Products specifications

Category Integrated Circuits (ICs)>Logic - Translators, Level Shifters
Mfr Texas Instruments
Package Tape & Reel (TR)
Translator Type Voltage Level
Channel Type Bidirectional
Number of Circuits 1
Channels per Circuit 8
Voltage - VCCA 1.4 V ~ 3.6 V
Voltage - VCCB 1.65 V ~ 5.5 V
Output Type Open Drain, Push-Pull
Data Rate 110Mbps
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)

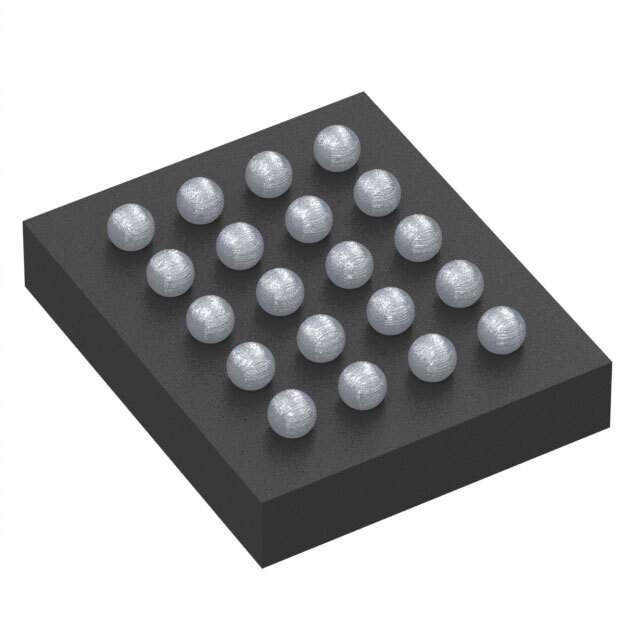

Package / Case 20-WFBGA
Supplier Device Package 20-NFBGA (2.5x3)
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 296-TXS0108ENMERTR
Standard Package 2,500
Win Source Part Number 966581-TXS0108ENMER
Ultra Librarian 3D Model Ultra Librarian TXS0108ENMER CAD Model

Description

The TXS0108ENMER is a state-of-the-art, 8-bit bidirectional level shifter manufactured by Texas Instruments. Designed for multi-voltage digital system applications, this device is capable of transferring data between two different voltage domains seamlessly. It is an essential component for interfacing devices operating at different logic levels, making it a versatile solution for a wide array of electronic systems.

Key Features

  • Voltage Level Translation: This level shifter can translate signals between two different voltage domains ranging from 1.2V to 3.6V on the A side and 1.65V to 5.5V on the B side, which allows for great flexibility in mixed-voltage system design.
  • Auto-Direction Sensing: The TXS0108ENMER is equipped with auto-direction sensing, which eliminates the need for direction control signals and simplifies the overall design and interface logic.
  • High-Speed Data Transfer: With the capability to support up to 100 Mbps, the device is suitable for high-speed signal transfer, which is ideal for advanced communication protocols.
  • Low Standby Current: Its low standby current consumption makes it an excellent choice for power-sensitive applications.
  • ESD Protection: The device includes 15 kV Human Body Model (HBM) ESD protection on all pins, providing robustness and reliability in harsh electrical environments.

Applications

The TXS0108ENMER is perfect for a variety of applications that require voltage level translation, such as:

  • Interfacing microcontrollers with different operating voltages
  • Serial communication interfaces like SPI, I2C, and UART
  • Memory interface and bus translation
  • GPI/O expansion modules
  • Cell phones, PDAs, and other portable devices

Package and Quality

Offered in a space-saving VQFN (RGT) 20-pin package, the TXS0108ENMER is designed to meet the demands of compact and portable designs. Texas Instruments ensures the highest quality and reliability, adhering to stringent industry standards, making this level shifter a trusted choice for designers and engineers worldwide.
