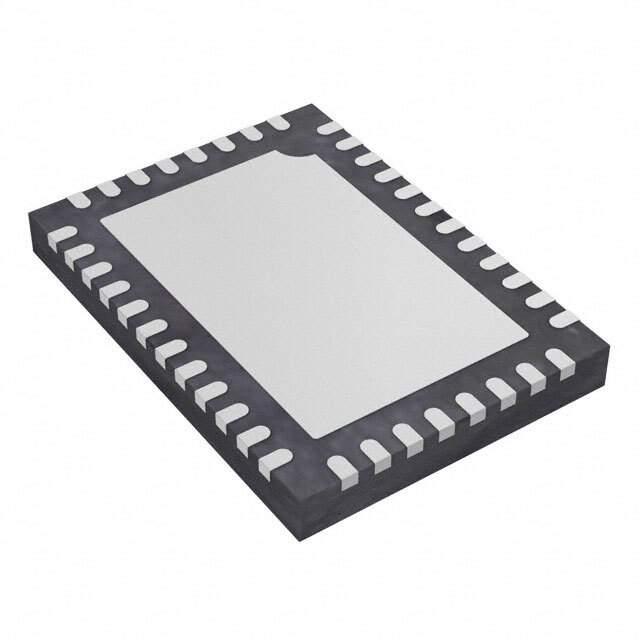

Introducing the TUSB546AI-DCIRNQT by Texas Instruments

The TUSB546AI-DCIRNQT is a cutting-edge USB Type-C Alt Mode redriving switch designed by the renowned Texas Instruments to enhance signal quality by performing equalization on the deteriorated input signal, followed by a redrive of the signal at a higher amplitude. This device is optimized for systems that require high bandwidth data and video transport over the USB Type-C connector.

As a high-performance solution, the TUSB546AI-DCIRNQT supports data rates up to 10 Gbps for USB 3.1 Gen 2, making it ideal for applications that demand fast data transfer speeds, such as external storage, docking stations, and display applications. Furthermore, it provides an excellent option for video transport, with support for DisplayPort 1.4 at HBR3 (High Bit Rate 3) speeds, ensuring compatibility with the latest video formats and display technologies.

The device's versatility is one of its standout features. It is designed to work seamlessly with both USB and DisplayPort signals, offering a two-lane or four-lane configuration. This flexibility makes it a perfect fit for a wide range of applications that require a mix of video, data, and power over a single USB Type-C connector.

For enhanced performance, the TUSB546AI-DCIRNQT incorporates advanced features such as adaptive equalization, which automatically adjusts the level of equalization to the quality of the input signal. This results in an optimized signal integrity across various cable types and lengths. Additionally, its built-in flat gain setting helps in maintaining signal fidelity by compensating for channel loss while maintaining a low output jitter.

The device is also designed with power efficiency in mind. It features a low standby power consumption, making it suitable for battery-powered applications where power conservation is crucial. Moreover, the TUSB546AI-DCIRNQT is equipped with I2C programmability, allowing for extensive flexibility in managing signal conditioning settings to cater to specific system requirements.

In summary, the TUSB546AI-DCIRNQT from Texas Instruments represents a robust and flexible solution for enhancing USB Type-C and DisplayPort connectivity in modern electronic devices. Its high-speed data transfer capability, support for advanced video standards, and power-efficient design make it an excellent choice for designers looking to optimize their systems for performance and reliability.
