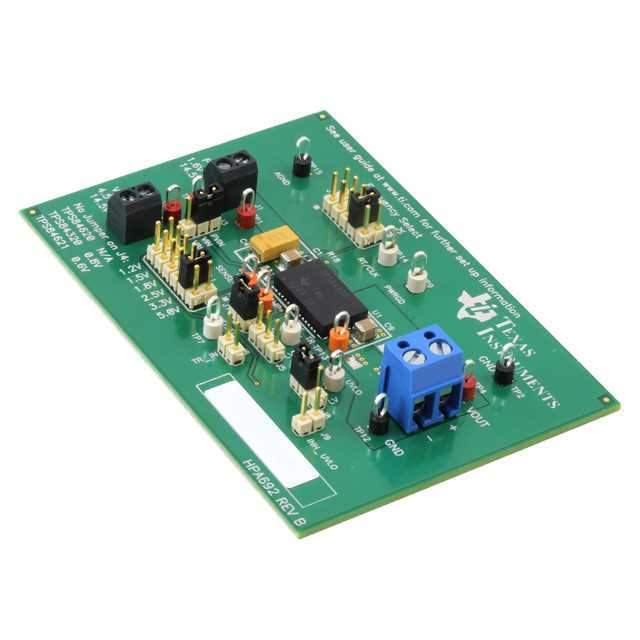

The TPS84320EVM-692 is a fully assembled and tested circuit board from Texas Instruments that evaluates the TPS84320 integrated circuit. This evaluation module (EVM) is designed to help designers quickly and efficiently test the performance and functionalities of the TPS84320, a highly efficient, fast-response, step-down integrated power solution with a wide input voltage range.

Key Features of TPS84320EVM-692

• Integrated Solution: The TPS84320EVM-692 integrates the inductor and passives onto a single device, providing a compact and efficient power management solution.
• Adjustable Output Voltage: This evaluation module allows for an adjustable output voltage range, making it flexible for various applications that require different voltage levels.
• High Efficiency: With its advanced design, the TPS84320EVM-692 offers high efficiency across a wide load range, which is critical for reducing power loss and improving system performance.
• Thermal Performance: The EVM is designed with thermal management in mind, ensuring that the module operates within its temperature range even under high load conditions.
• Input Voltage Range: The module supports a wide input voltage range, accommodating various power supplies and enabling its use in a broad range of applications.

Applications

The TPS84320EVM-692 is suitable for a variety of applications, including but not limited to:

• Telecommunications Infrastructure
• Networking Equipment
• Industrial Systems
• Point-of-Load Applications

Easy to Use

Designed for ease of use, the TPS84320EVM-692 can be set up quickly, allowing for immediate testing and verification. The module includes connectors and test points for simple integration into existing systems and for convenient access to all critical signals and pins for in-depth analysis.

Support and Resources

For additional support and resources, designers can access comprehensive documentation, including the TPS84320EVM-692 user guide, schematic diagrams, bill of materials, and PCB layout files, directly from the Texas Instruments website.
