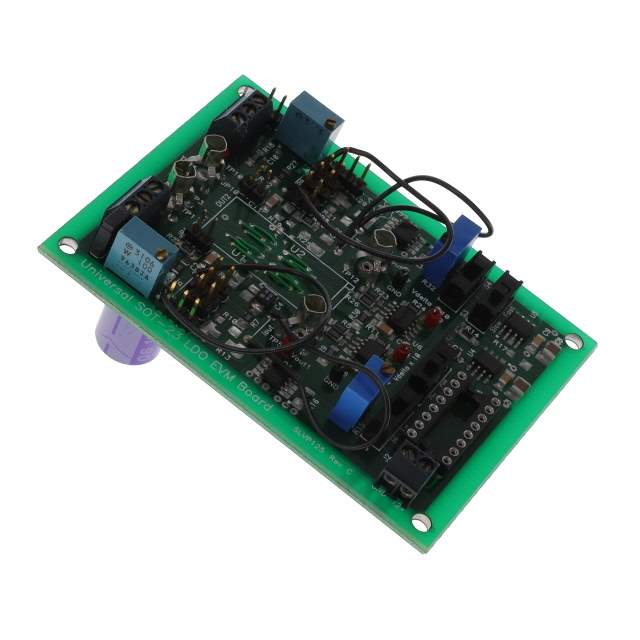

The TPS76XXXEVM-125 Evaluation Module (EVM) is a fully assembled and tested circuit board from Texas Instruments that facilitates the assessment of the TPS76XXX family of low-dropout (LDO) regulators. These regulators are designed to deliver high performance, with features that make them ideal for a wide range of applications.

Key Features

• Wide Input Voltage Range: The EVM is capable of handling a broad input voltage range, making it suitable for various applications from industrial to consumer electronics.
• Adjustable Output: Users can adjust the output voltage to meet the requirements of their specific application, providing versatility and precision.
• High Efficiency: The LDO regulators on this module are optimized for high efficiency, which is critical for battery-operated devices.
• Low Dropout Voltage: The low dropout feature ensures that the regulator maintains a stable output even when the input-to-output voltage differential is minimal.
• Thermal Protection: Built-in thermal protection safeguards the device from overheating, ensuring reliable operation under varying conditions.
• Overcurrent Protection: The module also includes overcurrent protection to prevent damage from high current loads.

Applications

The TPS76XXXEVM-125 is suitable for a plethora of applications, including but not limited to:

• Portable Electronics
• Wireless LAN Devices
• GPS Systems
• Set-Top Boxes
• Medical Equipment

Design and Layout

The EVM's layout is designed for optimal performance, with a compact form factor that allows for easy integration into existing systems. The board includes all necessary components to evaluate the TPS76XXX series, including decoupling capacitors, resistors to set the output voltage, and test points for easy measurement and access to the regulator's features.

Support and Resources

Users of the TPS76XXXEVM-125 can access extensive support and resources from Texas Instruments, including detailed datasheets, application notes, and online forums. Additionally, TI's technical support team is available to assist with any questions regarding the EVM or its application in specific projects.
