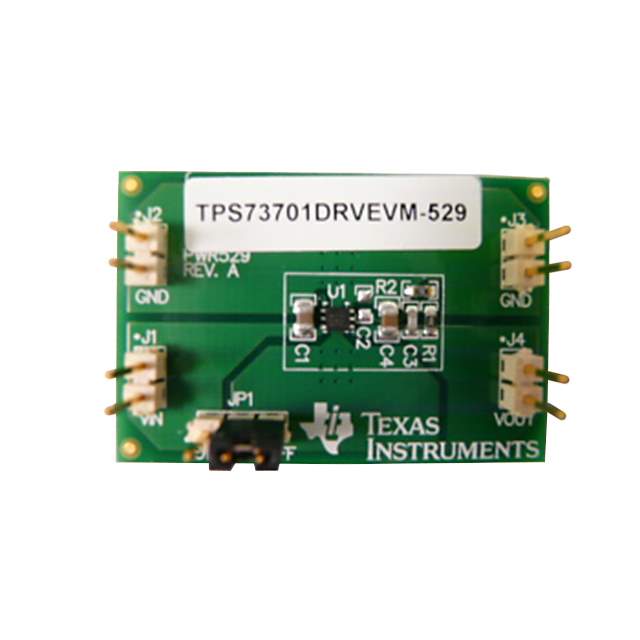

The TPS73701DRVEVM-529 is a fully assembled and tested circuit for evaluating the TPS73701 Low-Dropout Regulator from Texas Instruments. This high-performance, single-output LDO offers outstanding ac performance with very low ground current, making it an ideal choice for high-end consumer applications where power efficiency and thermal performance are critical.

Key Features:

• High Efficiency: The TPS73701 LDO is designed to deliver a high power conversion efficiency, which is essential for battery-powered devices.
• Low Dropout: With its low dropout voltage, the TPS73701 maintains regulation with minimal input-to-output voltage differential, ensuring the maximum possible battery life in portable applications.
• Adjustable Output: The output voltage of the TPS73701DRVEVM-529 can be adjusted from 1.2V to 5.5V, offering flexibility for a variety of design requirements.
• Thermal Protection: The LDO includes over-temperature protection to safeguard against excessive heat, ensuring reliable operation under various conditions.
• Fast Transient Response: The device is optimized for fast transient response, which is crucial for maintaining voltage stability during sudden changes in load.

Applications:

The TPS73701DRVEVM-529 is suitable for a wide range of applications, including:

• Portable and battery-powered equipment
• High-end consumer electronics
• Wireless and DSL modems
• Medical devices
• Power supply for DSPs and microcontrollers

Package Contents:

The evaluation module package includes the TPS73701DRVEVM-529 board, a comprehensive user guide, and additional documentation to facilitate quick setup and evaluation. The board's layout is designed for easy access to all test points, enabling thorough evaluation of the TPS73701's features in a variety of configurations.

Additional Resources:

For further information, including detailed specifications, application notes, and support tools, visit the Texas Instruments website or contact their support team. The TPS73701DRVEVM-529 provides an excellent platform for designers to explore the capabilities of the TPS73701 LDO and integrate it into their next high-performance power management solution.
