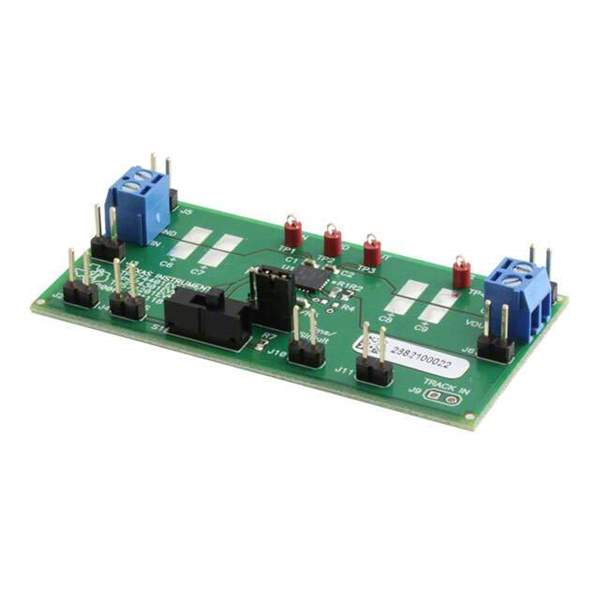

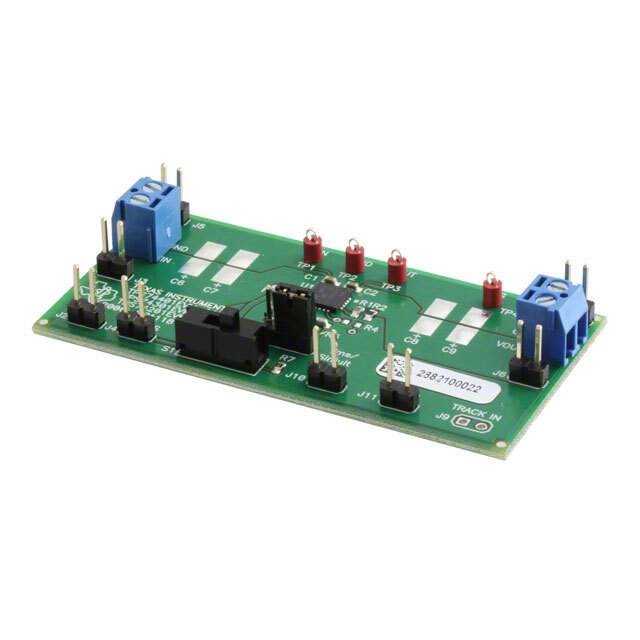

The TPS74201EVM-118 from Texas Instruments is a fully assembled and tested circuit for evaluating the TPS74201 Low-Dropout Regulator. This evaluation module (EVM) is designed to help users quickly and easily assess the performance of the TPS74201 LDO in their specific application context.

Key Features

• Adjustable Output Voltage: The TPS74201EVM-118 offers an adjustable output voltage range, making it versatile for a variety of applications.
• High Efficiency: With its low dropout feature, the EVM ensures high efficiency, which is critical for power-sensitive designs.
• Thermal Protection: The module includes built-in thermal shutdown and overcurrent protection, safeguarding your design against potential damage from overheating or excessive current draw.
• Easy-to-Use: The EVM comes with user-friendly features such as test points and onboard indicators that simplify the process of testing and prototyping.

Applications

The TPS74201EVM-118 is suitable for a wide range of applications, including but not limited to:

• Power supply for microcontrollers, microprocessors, and DSPs
• Post-regulation for switching power supplies
• Battery-powered equipment
• Industrial and automotive applications

Technical Specifications

The EVM includes the following technical specifications:

• Input Voltage Range: 1.5V to 6.0V
• Output Voltage Range: 0.8V to 5.0V (adjustable)
• Output Current: Up to 1.5A
• Low Dropout Voltage
• High PSRR (Power Supply Rejection Ratio)

Package Contents

When you order the TPS74201EVM-118, you will receive:

• The TPS74201EVM-118 evaluation board
• Comprehensive technical documentation, including schematics and user guides

With the TPS74201EVM-118, Texas Instruments provides designers with a robust platform for developing and testing power management solutions that require stable, reliable, and efficient low-dropout regulation.
