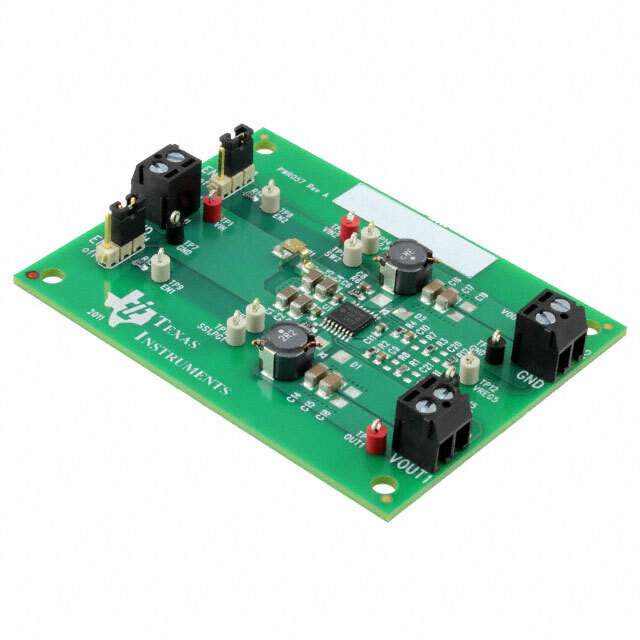

The TPS54295EVM-057 from Texas Instruments is a highly efficient, dual-output, synchronous step-down evaluation module (EVM) designed for testing the performance of the TPS54295 dual, step-down, SWIFT™ (Switcher With Integrated FET Technology) converter. This EVM is an excellent tool for engineers and designers who are interested in evaluating the capabilities of the TPS54295 for power supply solutions in their applications.

Key Features

• Input Voltage Range: The EVM operates over a wide input voltage range from 2.9V to 6V, making it suitable for a variety of low-voltage applications.
• Dual Channel Outputs: It features two independent outputs that can deliver 2.5A and 1.5A of continuous current, respectively, allowing for simultaneous powering of multiple devices.
• Adjustable Switching Frequency: The TPS54295 allows for an adjustable switching frequency up to 2.5MHz, which can be optimized for efficiency or component size.
• High Efficiency: With integrated MOSFETs, the TPS54295EVM-057 provides a highly efficient power conversion, reducing heat dissipation and improving system performance.
• Thermal Shutdown: The EVM includes thermal shutdown protection, ensuring safe operation under high temperature conditions.
• Easy to Use: The evaluation module comes with pre-installed components and connectors, facilitating quick setup and experimentation.

Applications

The TPS54295EVM-057 is ideal for a range of applications, including but not limited to:

• Point of Load (POL) power supplies
• Consumer electronics
• Networking and telecommunications equipment
• Industrial systems

Design and Layout

The layout of the EVM has been carefully designed to showcase the optimal performance of the TPS54295 converter. It includes high-quality capacitors and inductors that ensure stable operation under various load conditions. The EVM also features several test points and jumpers for easy measurement and configuration of the converter's parameters.

Support and Documentation

For ease of use and to accelerate development, Texas Instruments provides comprehensive support and documentation for the TPS54295EVM-057. This includes detailed user guides, schematic diagrams, bill of materials, and application notes available on the Texas Instruments website.
