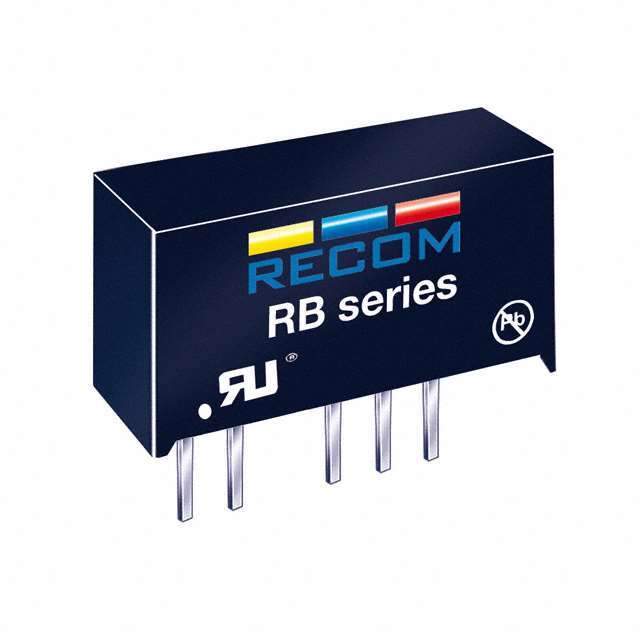

RB-0515D/HP Real Image
Same model may have multiple batches, images only for reference.

RB-0515D/HP

Part No RB-0515D/HP
Manufacturer Recom Power
Catalog HOT - SALES and EOL Components
Description DC DC CONVERTER +/-15V 1W
Datasheet
RB-0515D/HP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Recom Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Minimum) 4.5V
Voltage - Input (Maximum) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 33mA, 33mA
Power (W) 1W
Voltage - Isolation 2kV
Applications ITE (Commercial), Medical
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 84%
Mounting Style Through Hole
Manufacturer Package 7-SIP Module, 5 Leads
Parts Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 046049-RB-0515D/HP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RB-0515D/HP CAD Model

Description

The RB-0515D/HP is a 2-output isolated DC/DC Converter Module with SCP feature.

  • Type: DC/DC Converter Module
  • Outputs: 2, Isolated
  • Feature: SCP (Short Circuit Protection)
  • Power Rating: 1W
  • Efficiency: 84%
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltages: ±15V
  • Applications: ITE (Commercial) and Medical
  • Package: 7-SIP Module, 5 Leads
  • Current Output: 33mA for both outputs
  • Temperature Range: -40°C to 85°C
  • RoHS Compliant: Yes
