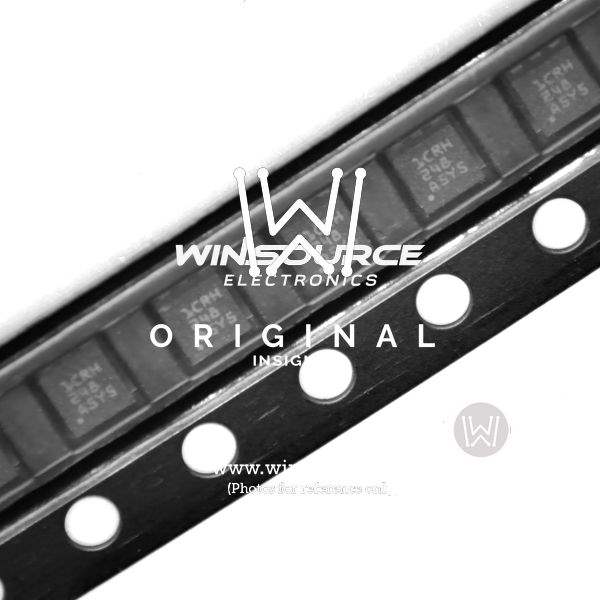

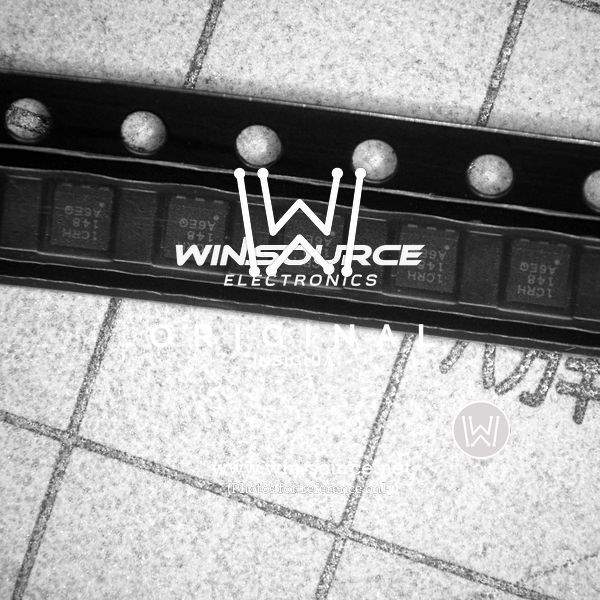

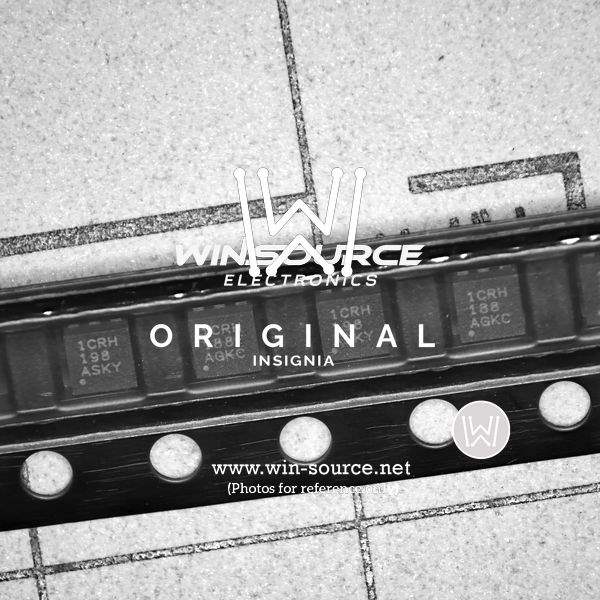

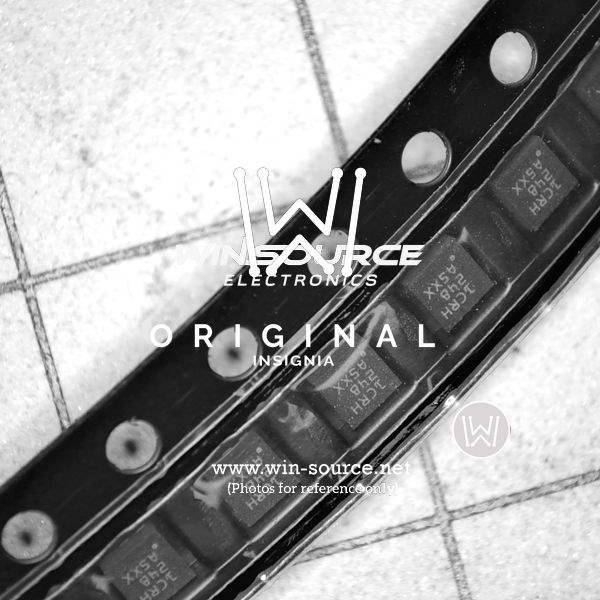

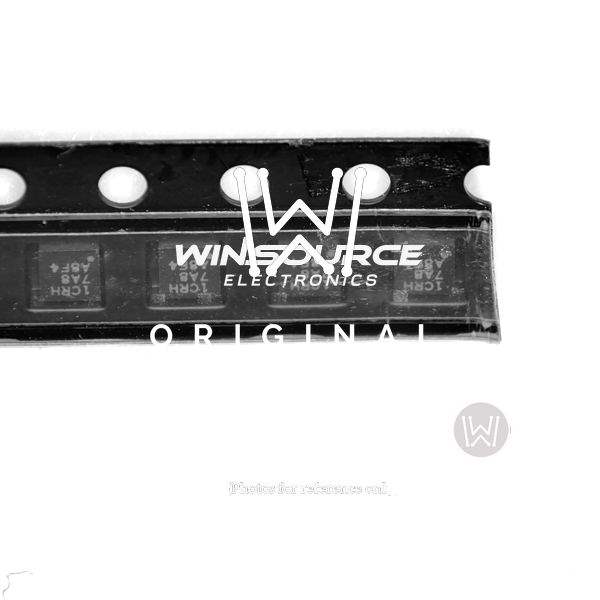

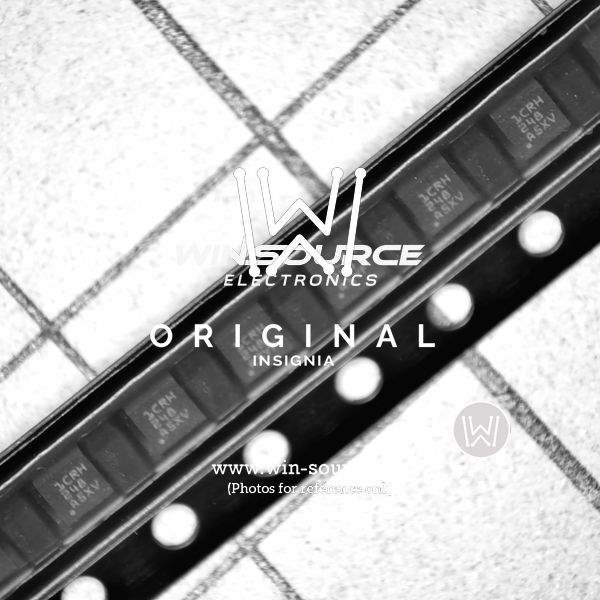

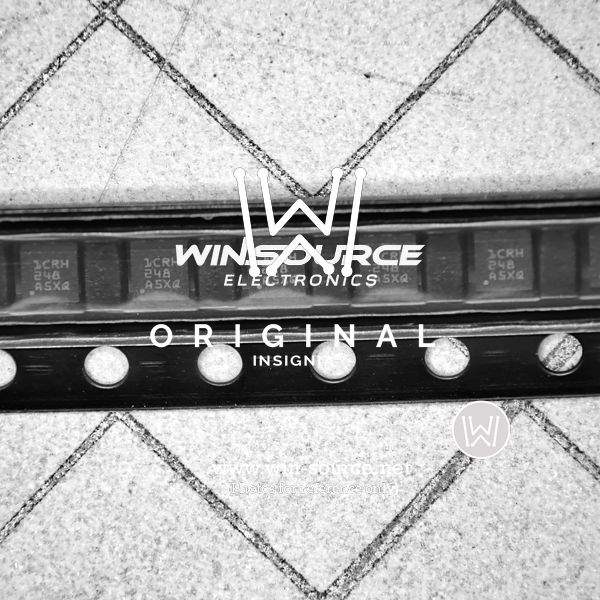

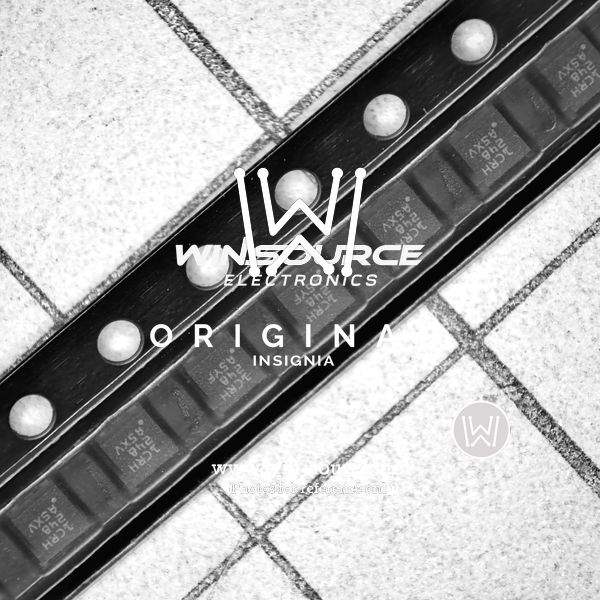

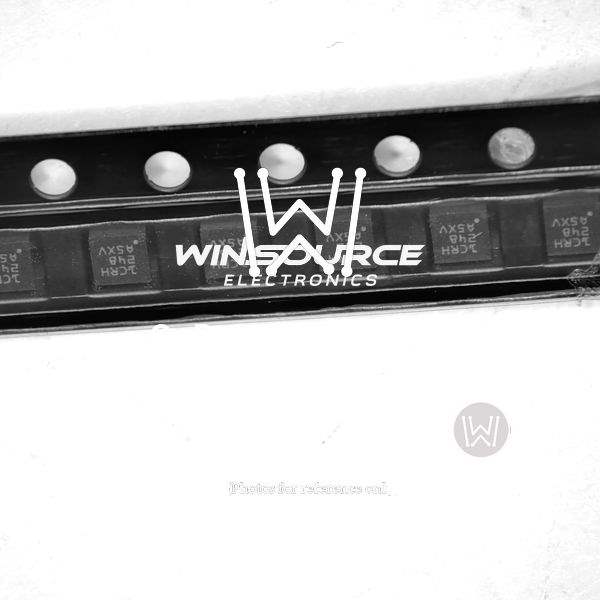

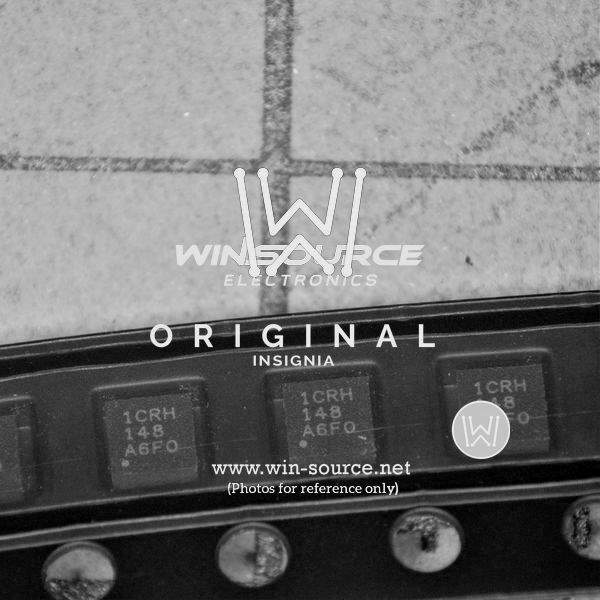

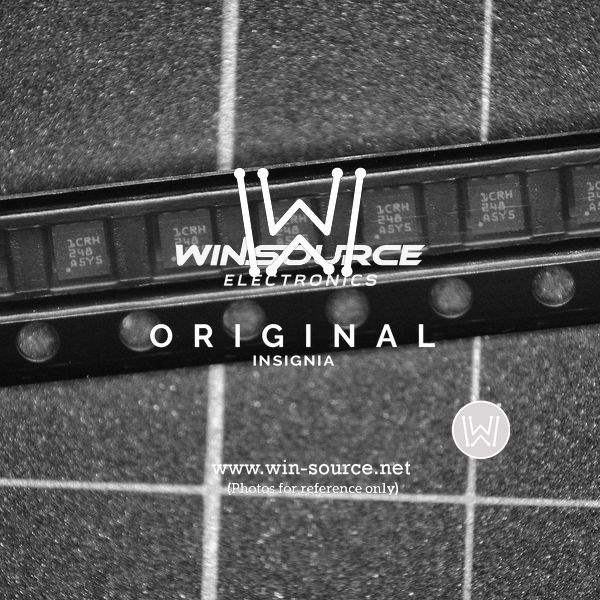

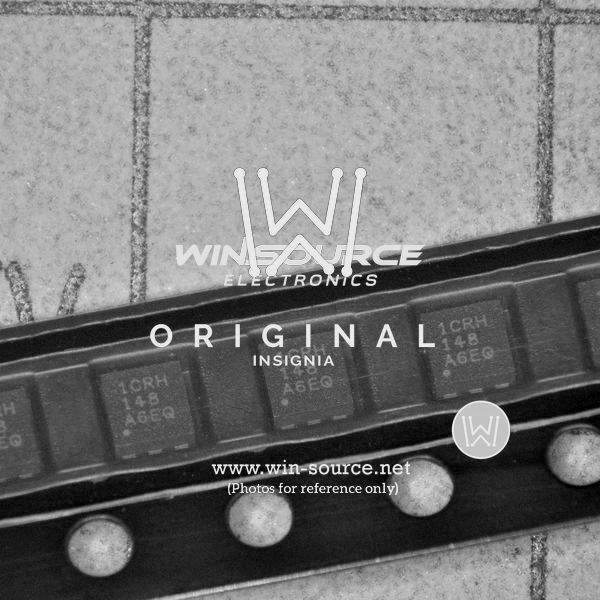

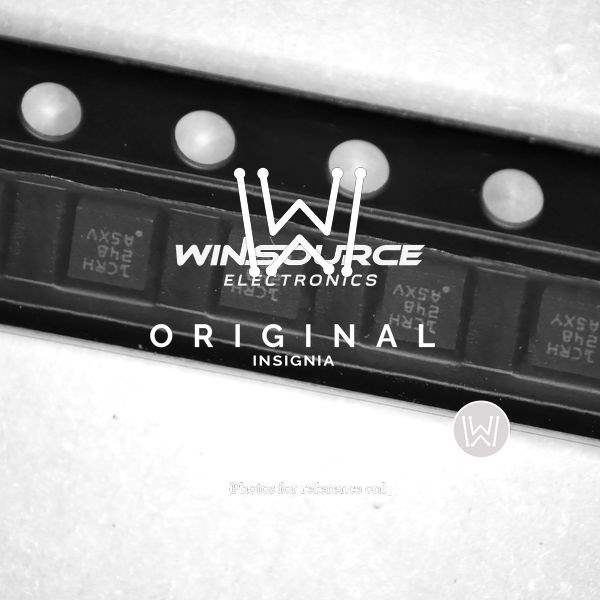

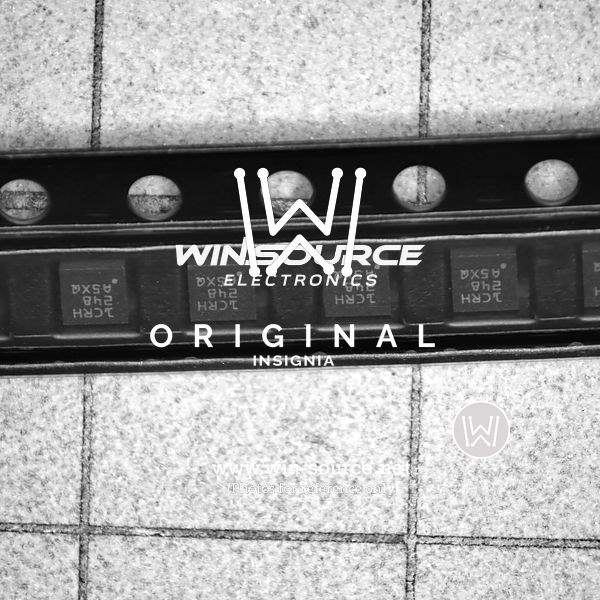

The TPS22810DRVR is a compact, high-performance load switch developed by Texas Instruments, designed for power management applications that require minimal power loss and high efficiency. This advanced switch is housed in a small 6-pin SON package, making it an ideal solution for space-constrained applications.

Key Features

• Input Voltage Range: The TPS22810DRVR operates over an input voltage range of 1.5V to 5.5V, accommodating a variety of power sources and making it suitable for multi-platform designs.
• Low On-Resistance: The device boasts an ultra-low on-resistance of just 16 mΩ at 5V, which ensures minimal voltage drop and power loss across the switch, enhancing overall system efficiency.
• Current Limiting: It features an adjustable current limit up to 2A, providing protection against overcurrent conditions and improving system reliability.
• Quick Output Discharge: The TPS22810DRVR includes a quick output discharge transistor that rapidly discharges the output capacitance when the switch is turned off, preventing unwanted voltage retention and enabling faster system response.
• Controlled Slew Rate: With its controlled slew rate, the load switch mitigates inrush current, reducing noise and potential interference in sensitive applications.
• Thermal Shutdown Protection: The device is equipped with thermal shutdown protection that prevents overheating by turning off the switch if the junction temperature exceeds safe operating limits.

Applications

The TPS22810DRVR is versatile and can be used in a wide range of applications, including but not limited to:

• Smartphones, tablets, and other portable electronics
• Wearable devices
• Power supplies and battery management systems
• Industrial and automotive systems

Conclusion

The Texas Instruments TPS22810DRVR load switch is an efficient and reliable solution for designers looking to enhance power management in compact electronic devices. With its robust feature set and versatile application range, this load switch is an excellent choice for modern electronic systems that demand high performance and reliability.
