TPD4E001DPKT - Texas Instruments ESD Protection Device

The TPD4E001DPKT is a robust, versatile ESD protection device from the trusted electronics manufacturer Texas Instruments. Designed to safeguard up to four data lines from electrostatic discharge (ESD) threats, this component is an essential addition to any sensitive electronic equipment prone to damage from ESD events.

With its low capacitance, the TPD4E001DPKT is particularly well-suited for high-speed data interfaces without compromising signal integrity. This makes it an excellent choice for applications such as USB 2.0, HDMI, Ethernet, and other serial and parallel interfaces that require both protection and performance.

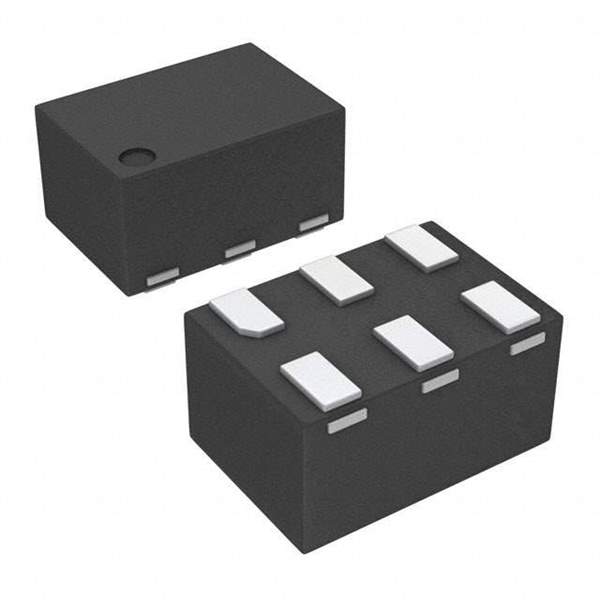

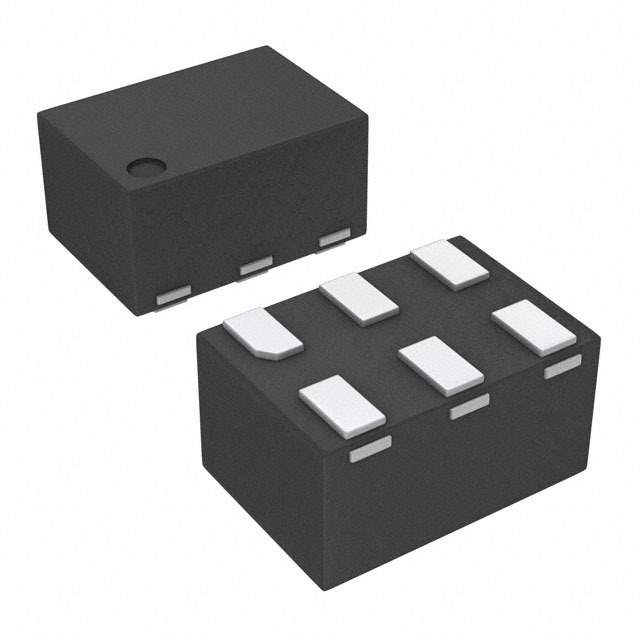

The device is housed in a small, lead-free DPKT package, which not only saves valuable board space but also meets environmental standards, supporting the design of green products. The TPD4E001DPKT has been meticulously engineered to provide a clamping voltage low enough to protect sensitive ICs against ESD strikes, yet robust enough to handle ESD strikes exceeding the IEC 61000-4-2 (Level 4) standard.

Key Features:

• IEC 61000-4-2 (Level 4) ESD protection
• Low clamping voltage
• Low dynamic resistance
• Low capacitance (0.8 pF typical)
• Protects up to four I/O lines
• Small DPKT package for space-saving design
• RoHS compliant

Applications for the TPD4E001DPKT are vast and include consumer electronics, portable devices, and industrial controls, where the integrity and reliability of data lines are of paramount importance. By integrating this ESD protection device into your design, you can significantly enhance the durability and longevity of your products against the common and potentially destructive effects of ESD.

Overall, the TPD4E001DPKT from Texas Instruments represents a sophisticated solution for designers looking to fortify their electronic systems against ESD without sacrificing performance or board space. With its combination of high-level protection, low capacitance, and compact footprint, the TPD4E001DPKT is an excellent choice for any application where ESD protection is a critical concern.
