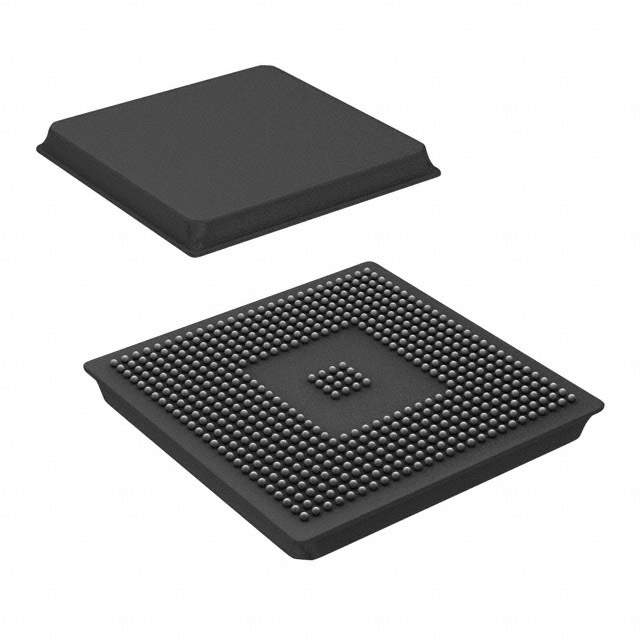

Texas Instruments TMS320C6412AGDK7 Digital Signal Processor

The TMS320C6412AGDK7 is a high-performance digital signal processor (DSP) from Texas Instruments (TI), renowned for its robust processing capabilities and efficiency in handling complex signal processing tasks. This DSP is part of the TMS320C64x series, which is designed to meet the intense computational demands of modern audio, telecommunications, and multimedia applications.

At the core of the TMS320C6412AGDK7 is a fixed-point architecture that operates at a clock speed of up to 600 MHz, providing a perfect balance between power consumption and processing speed. This makes it an ideal choice for applications requiring high-throughput and real-time processing, such as wireless infrastructure, voice and data communications, medical imaging, and industrial control systems.

Key features of the TMS320C6412AGDK7 include:

• Advanced Very-Long-Instruction-Word (VLIW) Architecture: This architecture enables parallel processing and efficient execution of operations, which significantly boosts the overall performance of the DSP.
• Large On-Chip Memory: The device includes a substantial amount of integrated memory, comprising 1MB Level 2 (L2) cache that can be configured as mapped RAM, cache, or a combination of both, and 16KB Level 1 (L1) program and data caches. This minimizes the need for external memory and helps to reduce system costs and complexity.
• High-Performance Internal Bus: The TMS320C6412AGDK7 features a high-bandwidth crossbar switch fabric that allows for concurrent data transfers without contention, thereby enhancing the data throughput and system performance.
• Rich Peripheral Set: The DSP comes equipped with a variety of peripherals, including a multichannel buffered serial port (McBSP), a host-port interface (HPI), an inter-integrated circuit (I2C) bus, and general-purpose input/output (GPIO) pins. These interfaces enable easy communication with other chips and peripheral devices.
• Scalable and Flexible: The TMS320C6412AGDK7 supports a range of external memory interfaces, including SDRAM and synchronous burst SRAM, which allows designers to scale memory according to application requirements.

Overall, the TMS320C6412AGDK7 DSP from Texas Instruments is a powerful and versatile processor that delivers exceptional performance for a wide range of signal processing applications. Its integration of advanced features and capabilities makes it an ideal choice for developers looking to create sophisticated and efficient systems.
