Overview of Texas Instruments TFP410PAPG4

The TFP410PAPG4 is a high-performance PanelBus™ digital transmitter from Texas Instruments, designed to facilitate the transmission of high-resolution video data from a digital source to a digital display. This integrated circuit is part of TI's broad range of interface solutions that cater to the increasing demand for high-definition multimedia interfaces in the electronics industry.

Key Features

• High-Quality Digital Video Transmission: The TFP410PAPG4 supports a pixel clock rate up to 165 MHz, making it capable of transmitting video data for resolutions up to 1080p, which is ideal for HD displays.
• Compatibility: It is compliant with the Digital Visual Interface (DVI) 1.0 specification, ensuring compatibility with a wide range of digital video sources and displays.
• Flexible Interface: The device includes a 12-bit, dual-edge input that provides a flexible interface with graphics controllers.
• Enhanced Functionality: It features a reduced blanking mode, which allows for lower power consumption and increased efficiency during data transmission.
• Integrated Circuit: The TFP410PAPG4 incorporates a Transition Minimized Differential Signaling (TMDS) transmitter, which minimizes signal distortion and electromagnetic interference over cable lengths, ensuring a clean and stable signal transmission.

Applications

The TFP410PAPG4 is an ideal choice for a variety of applications that require the transmission of high-quality digital video signals. These include:

• High-definition televisions (HDTVs)
• Computer monitors and digital projectors
• Professional video editing and playback equipment
• Digital signage and video walls

Technical Specifications

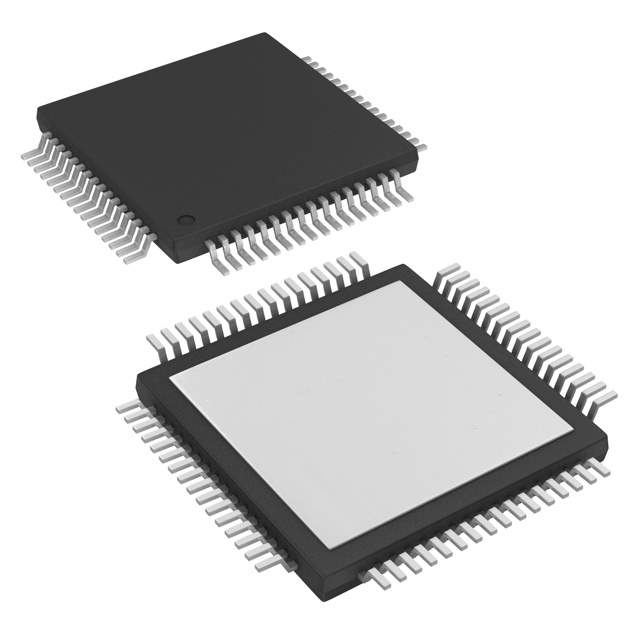

The device operates over a supply voltage range of 3.3V and is available in a 64-TQFP (Plastic Quad Flatpack) package. It is rated for commercial temperature ranges, making it suitable for various operating environments.

Conclusion

With its robust design and advanced features, the TFP410PAPG4 from Texas Instruments is a reliable and efficient solution for system designers looking to bridge the gap between cutting-edge digital video sources and displays. Its adherence to industry standards and ease of integration make it a versatile component for a multitude of high-definition video applications.
