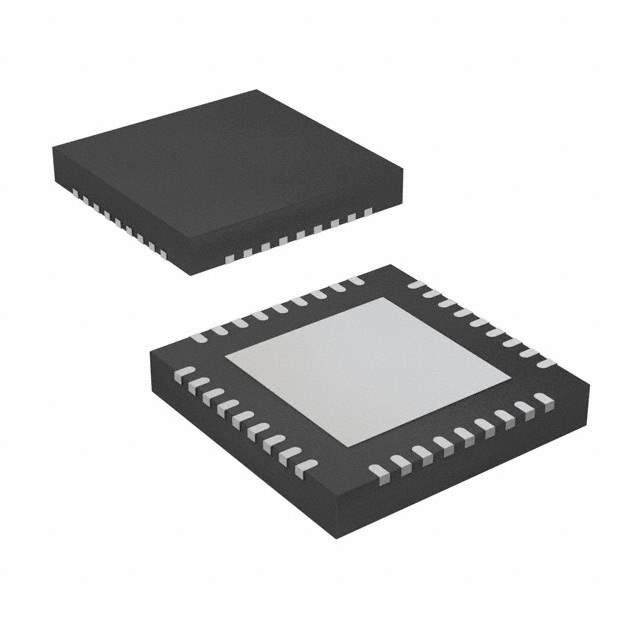

Product Overview: Texas Instruments SN75DP120RHHT

The Texas Instruments SN75DP120RHHT is a cutting-edge DisplayPort dual-mode repeater designed to manage and enhance signal quality for high-definition multimedia interfaces. This powerful component is an essential building block for systems that require a reliable and robust interface for video and audio transmission.

Key Features

• Dual-Mode DisplayPort Capability: The SN75DP120RHHT supports dual-mode DisplayPort (DP++) functionality, making it capable of converting DisplayPort signals to DVI or HDMI when used with a suitable adapter. This feature allows for a wide range of connectivity options and is essential for multi-format display solutions.
• High-Resolution Support: It is designed to handle high bandwidth digital content, supporting resolutions up to 4K, making it ideal for applications that require ultra-high-definition video.
• Improved Signal Integrity: The device includes advanced signal conditioning features that enhance signal integrity over long cable runs. This ensures that the video and audio quality is maintained without degradation, even in challenging environments.
• Low Power Consumption: As with many Texas Instruments products, power efficiency is a key consideration. The SN75DP120RHHT boasts low power consumption, making it suitable for use in energy-sensitive applications.
• Robust ESD Protection: The integrated electrostatic discharge (ESD) protection circuitry safeguards the device against static damage, which is crucial for maintaining the longevity and reliability of the product.

Applications

The SN75DP120RHHT is versatile and can be used in a variety of applications. It is particularly well-suited for:

• High-definition televisions (HDTVs)
• Computer monitors and display systems
• Professional AV systems
• Digital signage and video walls
• Docking stations and adapters

Design and Integration

Engineers and designers will appreciate the SN75DP120RHHT's compact QFN package, which facilitates easy integration into space-constrained designs. The device also features a simple I2C interface for configuration, making it straightforward to incorporate into existing systems or new designs.

Overall, the Texas Instruments SN75DP120RHHT is a reliable and high-performing solution for enhancing DisplayPort signal quality in a range of multimedia applications. Its robust feature set and design flexibility make it an excellent choice for manufacturers and integrators looking to deliver top-tier visual experiences to their customers.
