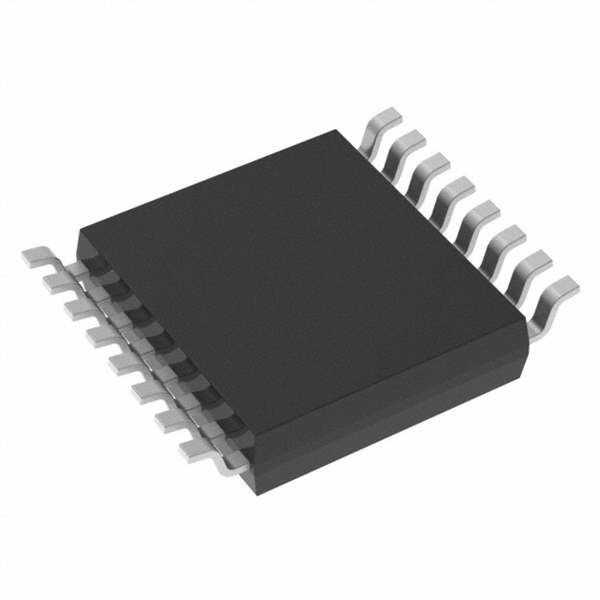

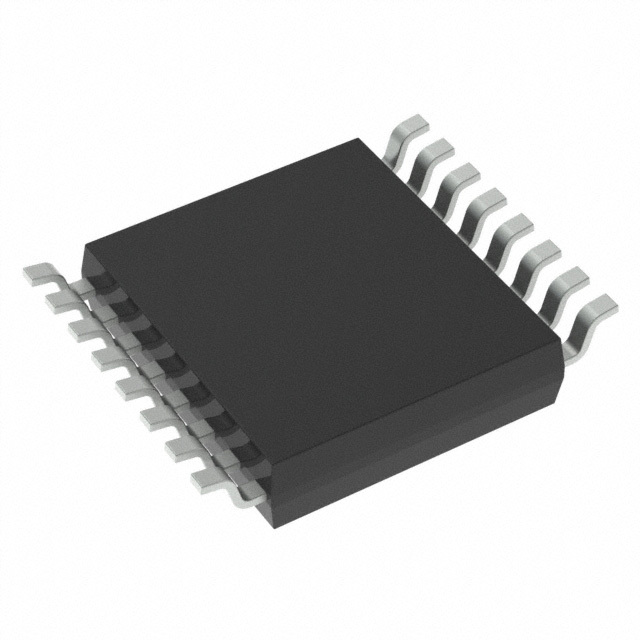

The SN74HCS365QPWRQ1 from Texas Instruments is a high-performance, hex bus buffer designed to provide reliable and efficient interfacing solutions for automotive and industrial applications. This robust device features six independent non-inverting buffers with 3-state outputs, making it an ideal choice for driving bus lines or buffering memory address registers.

Key Features

• Logic Family: HCS - High-speed CMOS
• Operating Voltage: 2 V to 6 V, accommodating a wide range of applications and ensuring compatibility with both legacy and modern system voltages.
• Output Drive Capability: Capable of driving up to 15 LSTTL loads, providing ample current for most demanding applications.
• 3-State Outputs: Allows for connection to a bus-structured system, effectively preventing bus contention by placing the outputs in a high-impedance state.
• Automotive Grade: Qualified for automotive applications, ensuring reliability and performance under harsh conditions.
• Temperature Range: Operating temperature range from -40°C to 125°C, suitable for extreme environments.
• Package: Supplied in a TSSOP (Thin Shrink Small Outline Package) with 14 pins, offering a compact footprint for space-constrained applications.

Applications

The SN74HCS365QPWRQ1 is versatile and can be used in a variety of electronic systems, including:

• Automotive control units
• Signal buffering in industrial controls
• Memory address driving
• Bus transceivers in data communication systems

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability. The SN74HCS365QPWRQ1 is no exception, and it meets stringent automotive industry standards, including AEC-Q100 qualification. With Texas Instruments' proven track record, customers can be confident in the consistent performance and long-term durability of this hex bus buffer.

Ordering Information

To purchase the SN74HCS365QPWRQ1, refer to its complete part number including the package designator, which in this case is PWR for the TSSOP-14 package. For detailed ordering and shipping information, consult the Texas Instruments website or authorized distributors.
