Product Overview: SN74AXC4T245BQBR

The SN74AXC4T245BQBR is a state-of-the-art, 4-bit non-inverting bus transceiver with a dual-supply voltage interface, designed and manufactured by Texas Instruments. This device is part of the AXC family, which is known for its low-power and high-speed operation, making it an ideal component for modern electronics that require efficient voltage level translation.

Key Features

• Voltage Level Translation: Capable of translating bidirectional signals between two voltage nodes ranging from 0.65 V to 3.6 V, allowing for seamless communication between devices operating at different voltage levels.
• Low Power Consumption: The SN74AXC4T245BQBR is designed for low static and dynamic power consumption, which is critical for battery-powered and energy-sensitive applications.
• High-Speed Operation: With support for data rates up to 380 Mbps, this transceiver is suitable for high-speed data transfer applications.
• ESD Protection: The device includes robust electrostatic discharge (ESD) protection, ensuring reliability and longevity in harsh electrical environments.
• Multiple Power Supply Configurations: The SN74AXC4T245BQBR supports dual-supply voltage operation, which can be independently configured to ensure compatibility with various logic levels.

Applications

The versatility of the SN74AXC4T245BQBR makes it an excellent choice for a wide range of applications, including:

• Mobile Phones
• Tablets
• Notebooks
• Portable Media Players
• Data Communication Systems
• Enterprise Servers

Package and Quality

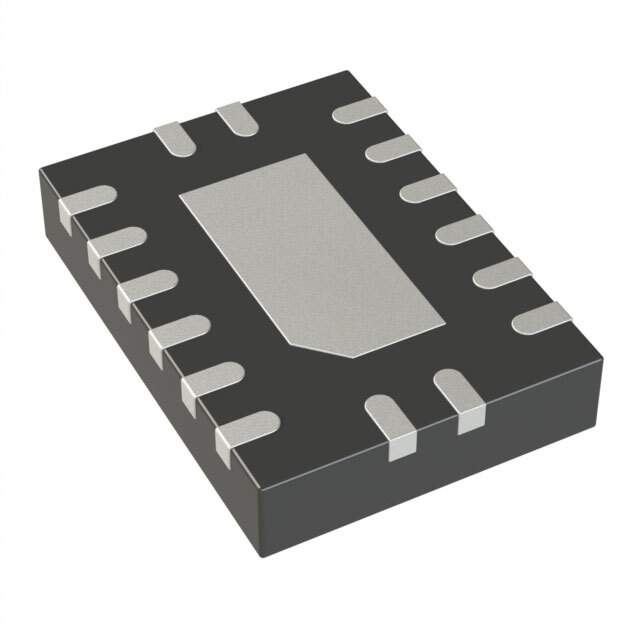

This device is offered in a compact DSBGA (BQ) package, which is designed for space-constrained applications. It is also available in other standard industry packages. The SN74AXC4T245BQBR is RoHS compliant and follows the stringent quality standards of Texas Instruments, ensuring high reliability and performance for your electronic designs.
