Product Overview: SN65HVD74DGK

The SN65HVD74DGK is a robust, high-performance transceiver module from Texas Instruments, designed for RS-485 and RS-422 communication applications. This device is part of the SN65HVD7x series, which is known for its reliability and efficiency in enabling long-distance data transmission across noisy industrial environments.

Key Features

• Bus-Pin ESD Protection: The SN65HVD74DGK comes with an impressive Electrostatic Discharge (ESD) protection for its bus-pin, ensuring durability against transient voltage spikes and maintaining the integrity of data communication.
• Signaling Rate: It supports a signaling rate up to 50 Mbps, making it suitable for applications that require high-speed data transfer.
• Differential Output: The device features a differential output that exceeds the requirements of the RS-485 and RS-422 standards, providing a robust signal for reliable communication over long cable runs.
• Thermal Shutdown Protection: With thermal shutdown protection, the SN65HVD74DGK is safeguarded against damage from over-temperature conditions, ensuring long-term stability and performance.
• Low Power Consumption: It operates with a low supply current, making it an energy-efficient choice for battery-powered and energy-conscious applications.

Applications

The SN65HVD74DGK is versatile and can be used in a variety of applications, including industrial control systems, building automation, factory automation, and any other systems that require robust data communication over long distances. Its resilience to noise and potential installation in harsh environments makes it an optimal choice for critical communication systems.

Package and Quality

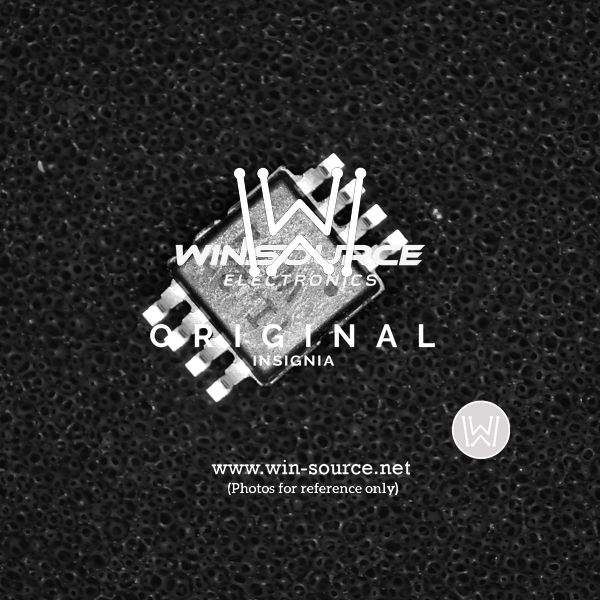

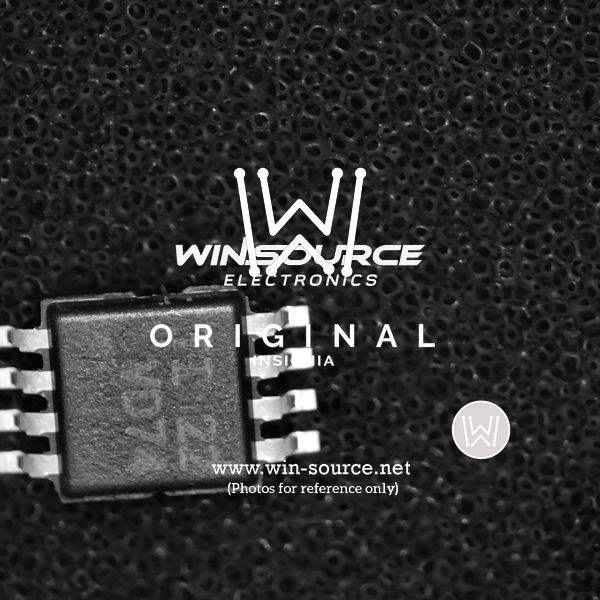

The device is available in an 8-pin DGK package, which is compact and suitable for space-constrained applications. Texas Instruments' commitment to quality ensures that each unit is manufactured to the highest standards, offering reliable performance for critical industrial applications.
