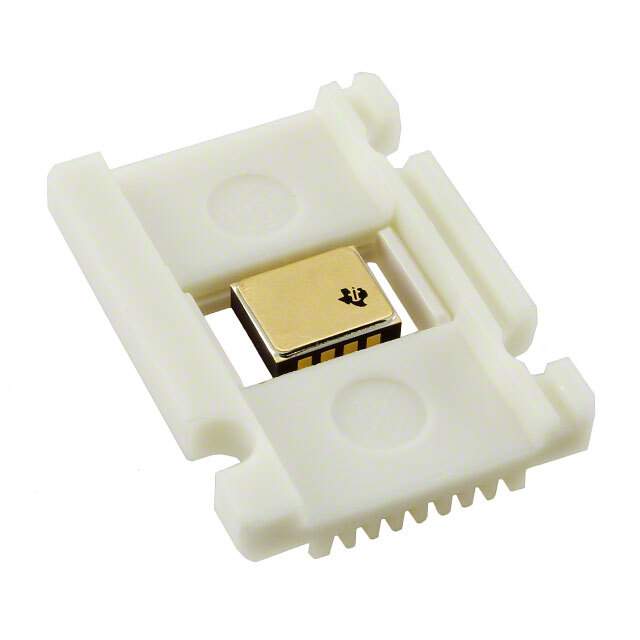

The SN65HVD11SHKJ is a robust differential bus transceiver component from Texas Instruments, designed to facilitate communication on RS-485 networks. This particular device is tailored for balanced transmission lines and complies with the TIA/EIA-485A standard, ensuring reliable data transmission over long distances and in noisy environments.

Key Features:

• Bus-Pin ESD Protection: The SN65HVD11SHKJ offers an impressive level of protection against electrostatic discharge (ESD), with up to 15 kV of protection on the bus pins, safeguarding the device from potential damage due to ESD events.
• Differential Output and Input Thresholds: The device boasts a large differential output range and differential input thresholds, which are essential for noise rejection and improved signal integrity on the RS-485 bus.
• Signaling Rates: It supports signaling rates up to 10 Mbps, making it suitable for high-speed data transmission applications that require efficient and reliable communication.
• Extended Temperature Range: The transceiver is operational over an industrial temperature range of -40°C to 85°C, ensuring performance in extreme environments.
• Supply Voltage: It operates from a single 3.3V supply, making it compatible with modern low-voltage systems.
• Power Consumption: The device features a low-power shutdown mode, which significantly reduces power consumption when the transceiver is not in active use.

Applications:

The SN65HVD11SHKJ is ideal for a variety of applications that require robust and reliable data communication, such as:

• Industrial control systems
• Building automation
• Networked security cameras
• Telecommunications
• Factory automation

Package and Quality:

This transceiver comes in a highly integrated package, which is designed to minimize the board space required. Texas Instruments ensures high-quality standards, and the SN65HVD11SHKJ is no exception, delivering performance and reliability that engineers and designers have come to expect from a leading semiconductor manufacturer.
