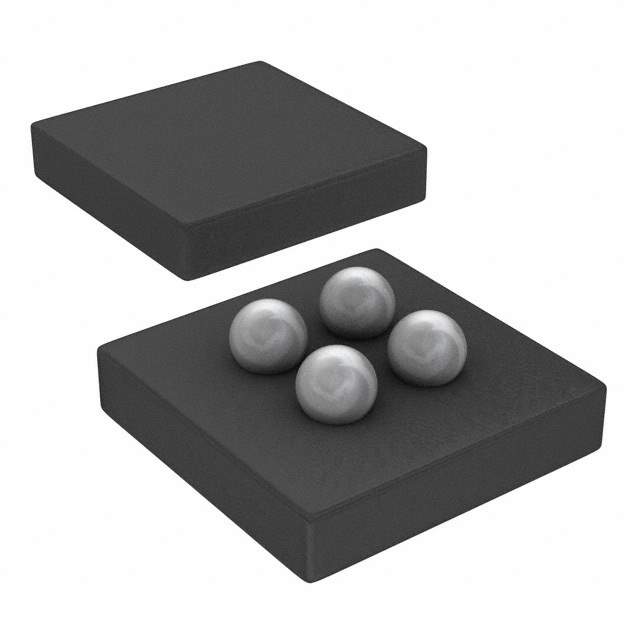

The SN65220YZBR is a state-of-the-art USB Transient Voltage Suppressor (TVS) designed and manufactured by the renowned electronics company, Texas Instruments (TI). This device is specifically engineered to protect sensitive electronics from voltage spikes and surges that are common in USB applications, including USB 1.1, 2.0, and other high-speed data interfaces.

Key Features

• Protection: The device offers robust protection against electrostatic discharge (ESD), electrical fast transients (EFT), and lightning-induced surges, ensuring the safety and longevity of connected electronics.
• Compatibility: With its wide compatibility, the SN65220YZBR is suitable for a variety of USB-powered devices, including smartphones, tablets, and other portable electronics.
• Low Capacitance: It features low dynamic resistance and low capacitance, minimizing signal distortion and ensuring high-fidelity data transmission.
• Compact Design: The small form factor of the component allows for easy integration into space-constrained designs without sacrificing performance.
• High Reliability: Built to TI's high-quality standards, the SN65220YZBR promises a long operational life and consistent performance under varying conditions.

Applications

The versatility of the SN65220YZBR makes it an ideal choice for a wide range of applications, including:

• USB hubs, peripherals, and docking stations
• Consumer electronics such as digital cameras and audio devices
• Portable medical equipment
• Point-of-sale terminals

Technical Specifications

Some of the key technical specifications of the SN65220YZBR include:

• Package Type: 5-pin SOT-23
• Peak Pulse Power: 500W (8/20µs waveform)
• Clamping Voltage: Low to moderate
• Operating Temperature Range: -40°C to 85°C

With its comprehensive protection features and reliable performance, the SN65220YZBR from Texas Instruments is an essential component for engineers and designers looking to safeguard their USB interfaces and connected devices from voltage-related damages.
