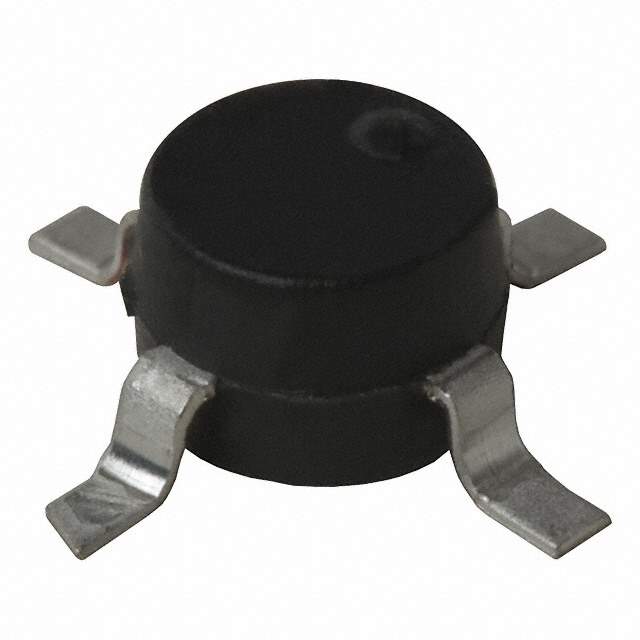

MSA-1105-TR1 Broadcom Limited MSA-1105-TR1 Real Image MSA-1105-TR1 label picture

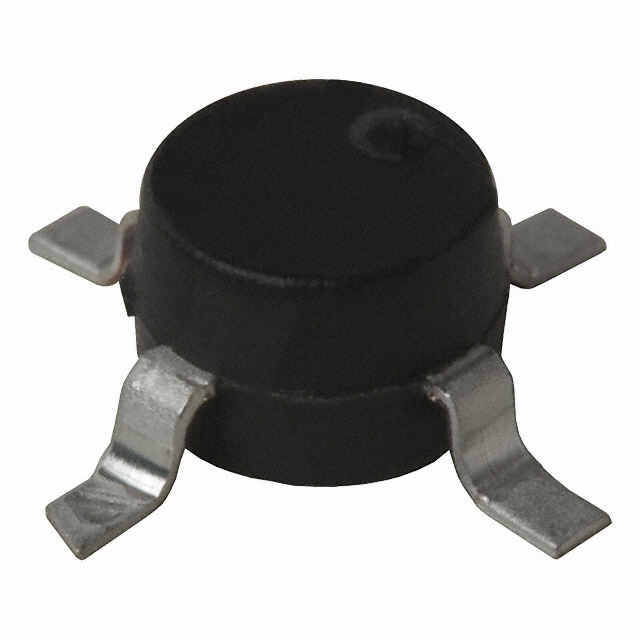

MSA-1105-TR1 Broadcom Limited MSA-1105-TR1 Real Image MSA-1105-TR1 label picture
Same model may have multiple batches, images only for reference.

MSA-1105-TR1

Part No MSA-1105-TR1
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description RF Amp Single MMIC Amp 1.3GHz 6.6V 4-Pin Case 05 T/R / IC AMP MMIC BIPOLAR 80MA 05-SMD
Datasheet
MSA-1105-TR1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 50MHz to 1.3GHz
P1dB 17.5dBm (56.2mW)
Gain 12dB
Noise Figure 3.6dB
RF Type ISM, PCS, WLL, 802.16/WiMax
Supply Voltage - Operating 4.4 V to 6.6 V
Operating Supply Current 80mA
Test Frequency 500MHz
Case / Package 05 Plastic Package
Win Source Part Number 128972-MSA-1105-TR1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MSA-1105
Introduction Date January 13, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MSA-1105-TR1 CAD Model

Description

The Broadcom Limited MSA-1105-TR1 is an ISM, PCS, WLL, 802.16/WiMax RF type with a frequency range of 50MHz to 1.3GHz.

  • Gain: 12dB
  • Noise Figure: 3.6dB
  • P1dB: 17.5dBm (56.2mW)
  • Package: 05 plastic package
  • Supply Voltage: 4.4V to 6.6V
  • Operating Supply Current: 80mA
  • Status: obsolete (EOL)
  • Popularity: high
  • Supply and Demand Status: balance
