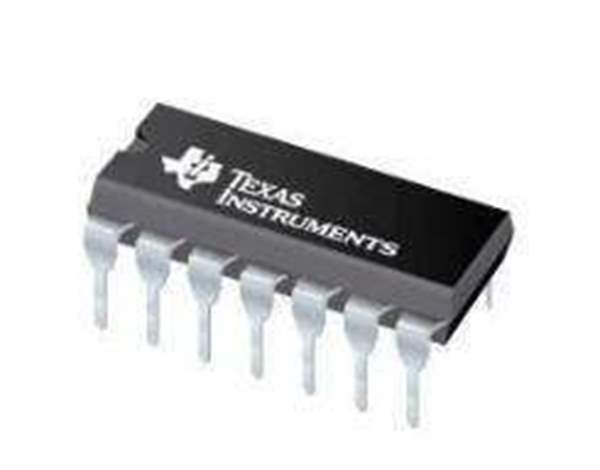

SN54S38J Texas Instruments
Same model may have multiple batches, images only for reference.

SN54S38J

Part No SN54S38J
Manufacturer Texas Instruments
Catalog Logic - Specialty Logic
Description Logic Gates Military 4-ch, 2-input, 4.5-V to 5.5-V bipolar NAND gates with open-collector outputs 14-CDIP -55 to 125
Datasheet
SN54S38J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Category Logic Gates
Logic Function NAND
Number of Input Lines 2 Input
Package / Case CDIP-16
Number of Output Lines 1 Output
Low Level Output Current 60 mA
High Level Output Current - 250 uA
Propagation Delay Time 9 ns
Supply Voltage - Min 4.5 V
Supply Voltage - Max 5.5 V
Minimum Operating Temperature - 55 C
Ultra Librarian 3D Model Ultra Librarian SN54S38J CAD Model

Description

These devices contain four independent 2-input NAND buffer gates with open-collector outputs. The open-collector outputs require pull-up resistors to perform correctly. They may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate high VOH levels.
