The LMG5200MOFT is a highly efficient Gallium Nitride (GaN) power stage module designed by Texas Instruments, aimed at transforming power delivery for a wide range of applications. This advanced module integrates a high-voltage GaN FET with a driver IC in a compact, low-inductance QFN package, providing an optimal solution for designers seeking to maximize energy efficiency and power density in their designs.

Key Features

• High Efficiency: The GaN FET technology offers superior switching speeds and reduced losses, leading to increased efficiency in power conversion applications.
• Integrated Driver: The inclusion of a driver IC simplifies design and reduces external component count, providing a more reliable and streamlined solution.

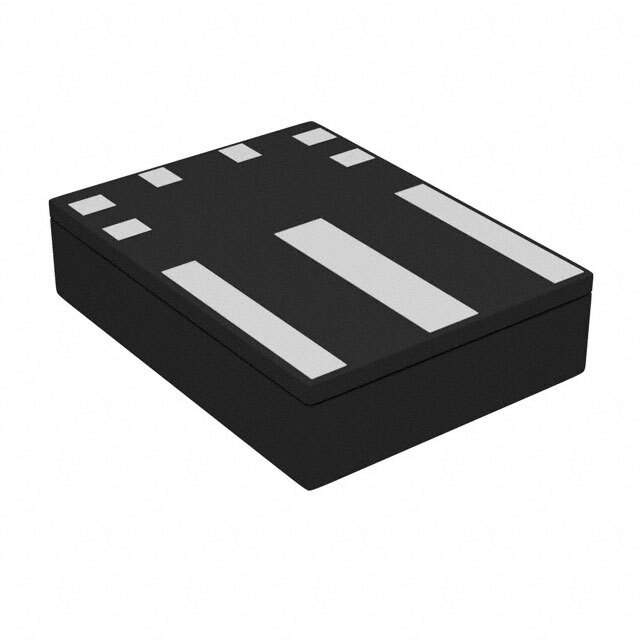

• Compact Footprint: With a 6 mm x 8 mm QFN package, the LMG5200MOFT is designed for space-constrained applications without compromising performance.
• High-Frequency Operation: Capable of operating at high frequencies, this power stage enables smaller passive components, further reducing the overall solution size and weight.
• Thermal Performance: The module's excellent thermal performance ensures reliable operation even under high power and temperature conditions.

Applications

The LMG5200MOFT is versatile and can be used in various high-performance applications, including:

• DC to DC converters
• AC to DC power supplies
• Class D audio amplifiers
• Motor drives and inverters
• Wireless power transmission

Advantages of GaN Technology

GaN technology is revolutionizing power electronics by offering faster switching, higher efficiency, and the ability to handle higher voltages than traditional silicon-based devices. This results in increased power density, which is critical in modern electronic devices where space and weight are at a premium. The LMG5200MOFT harnesses these benefits, making it an excellent choice for designers looking to push the boundaries of power conversion technology.

Overall, the LMG5200MOFT from Texas Instruments represents a leap forward in power electronics, combining cutting-edge GaN technology with an integrated driver to provide an efficient, compact, and high-performance power stage suitable for a multitude of advanced applications.
