The STM32F102C4T6ATR is a cutting-edge microcontroller product from STMicroelectronics, which is a part of their renowned STM32F1 series. This microcontroller is based on the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a frequency of up to 48 MHz. The STM32F102C4T6ATR is designed to offer an optimal balance between performance, power consumption, and cost, making it a perfect choice for a wide range of applications.

Key Features:

• Core: ARM® 32-bit Cortex®-M3 CPU
• Max frequency of 48 MHz
• Flash memory: 16 Kbytes
• SRAM: 4 Kbytes
• Supply voltage: 2.0 to 3.6 V
• Temperature range: -40°C to 85°C
• Package: LQFP48
• Communication interfaces: 2x I2C, 2x SPI, 3x USART
• 7-channel DMA controller
• Up to 37 fast I/O ports
• 12-bit ADC with 10 channels
• Debug mode: Serial wire debug (SWD) & JTAG interfaces

This microcontroller is designed to be versatile, with a rich set of peripherals that include multiple communication interfaces such as I2C, SPI, and USART, which allow for easy integration into various system designs. Furthermore, the STM32F102C4T6ATR comes with a robust 7-channel DMA controller that enhances its ability to handle complex data transfers with minimal CPU loading.

The device also features a 12-bit Analog-to-Digital Converter (ADC) with 10 channels, enabling it to interface with analog sensors and other input devices. The ample 37 fast I/O ports provide flexibility for connecting to external hardware.

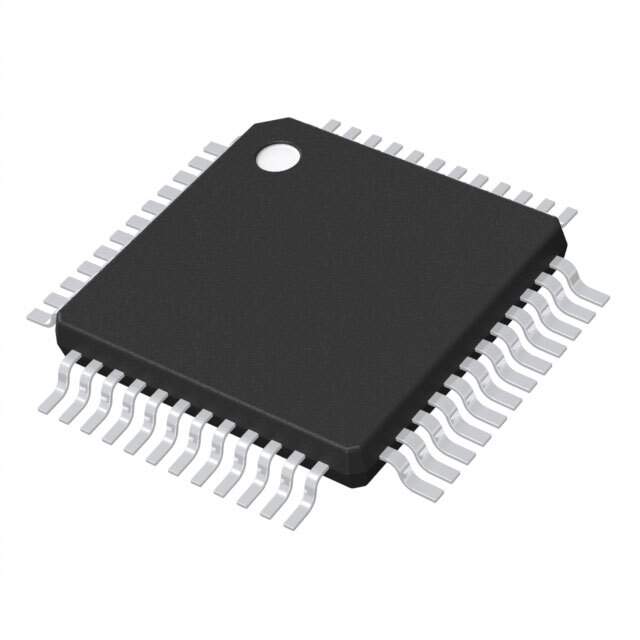

For developers, the STM32F102C4T6ATR supports serial wire debug (SWD) and JTAG interfaces, which facilitates easy programming, testing, and debugging. The microcontroller's LQFP48 package ensures that it can be accommodated in space-constrained applications while still providing enough I/O ports for most tasks.

Overall, the STM32F102C4T6ATR is an excellent choice for projects that require a compact, low-power, and high-performance microcontroller. It is suitable for a range of applications, including industrial controls, consumer electronics, and Internet of Things (IoT) devices.
