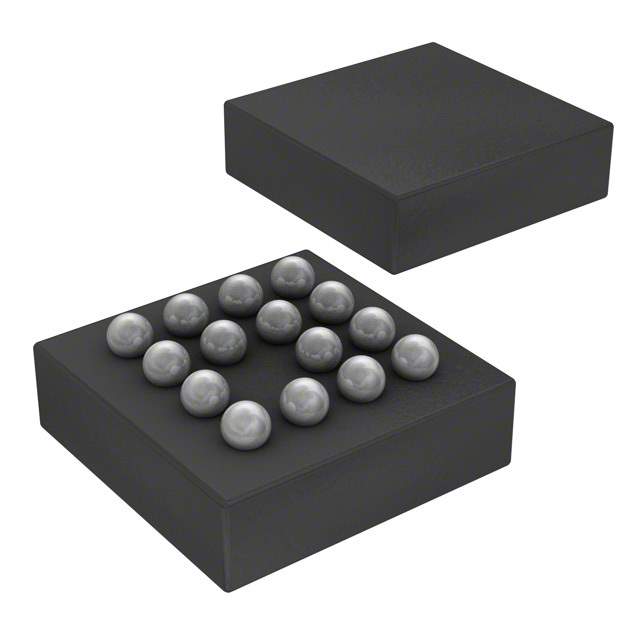

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Full, Half-Bridge Drivers
Mfr Rohm Semiconductor
Package Tape & Reel
Output Configuration Half Bridge (2)
Applications DC Motors, General Purpose
Interface Logic
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 800mOhm
Current - Output / Channel 400mA
Voltage - Supply 2.5V ~ 5.5V
Voltage - Load 2.5V ~ 5.5V
Temperature Range - Operating -25°C ~ 150°C (TJ)
Fault Protection Over Temperature, UVLO
Mounting SMD (SMT)
Package / Case 15-UFBGA, CSPBGA
Supplier Device Package 15-VCSP50L2 (2.1x2.1)
Base Product Number BD6369
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names BD6369GUL-E2CT,BD6369GUL-E2TR,BD6369GUL-E2DKR
Standard Package 3,000
Win Source Part Number 1049023-BD6369GUL-E2
Ultra Librarian 3D Model Ultra Librarian BD6369GUL-E2 CAD Model

Description

The BD6369GUL-E2 is a power MOSFET integrated circuit (IC) manufactured by Rohm Semiconductor.

  • Category: PMIC - Full, Half-Bridge Drivers
  • Standard Package: 3,000
  • Applications: DC motors and general-purpose
  • Interface: logic
  • Fault Protection: over-temperature and UVLO
  • Output Configuration: half-bridge
  • Voltage Load: 2.5V ~ 5.5V
  • Operating Temperature Range: -25°C ~ 150°C (TJ)
