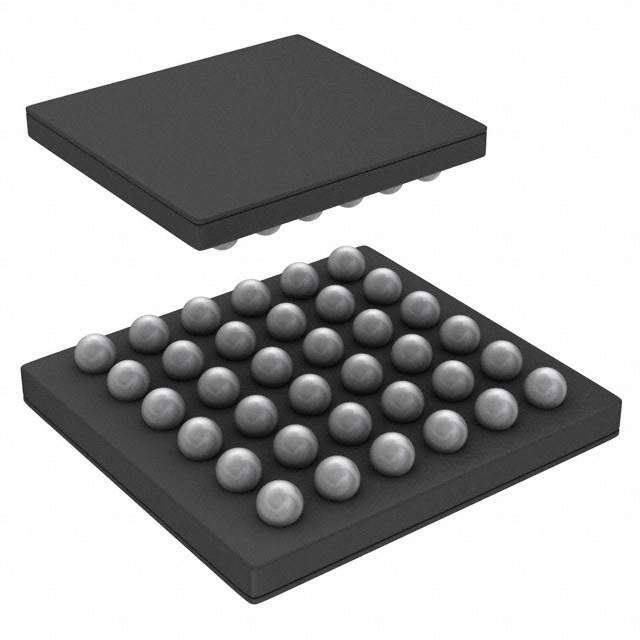

The LM4937TL Evaluation Board from Texas Instruments is a comprehensive platform designed to facilitate the testing and performance evaluation of the LM4937TL audio subsystem. This integrated circuit is optimized for mobile phones, PDAs, and other handheld devices, offering a high-quality audio experience for both voice and music playback.

Key Features

• High-Quality Audio: The LM4937TL features a stereo codec with 3D sound enhancement, providing an immersive audio experience.
• Low Power Consumption: Designed for portable applications, it operates with minimal power consumption, extending battery life in mobile devices.
• Multiple Input/Output Options: The evaluation board supports various inputs and outputs, including a microphone input, stereo headphone output, and an integrated speaker amplifier.
• Flexible Configuration: Users can configure the LM4937TL through its I²C/SPI compatible interface, allowing for extensive control over the audio parameters.

Technical Specifications

• Power supply voltage: Typically 3.3V
• Headphone amplifier output power: Up to 30mW per channel
• Speaker amplifier output power: Up to 495mW
• Signal-to-Noise Ratio (SNR): High SNR for clear audio playback
• THD+N: Low total harmonic distortion plus noise

Applications

The LM4937TL is suitable for a wide range of audio applications, particularly where space and power consumption are critical considerations. It is ideal for:

• Mobile phones and smartphones
• Personal Digital Assistants (PDAs)
• Portable media players
• Handheld gaming devices

Package Contents

The evaluation board package includes the LM4937TL Evaluation Board itself, along with comprehensive documentation that covers the board's layout, schematic, setup guide, and usage instructions. This ensures that users can quickly begin testing and integrating the audio subsystem into their designs.

Support and Resources

For additional support, users can access Texas Instruments' extensive online resources, including application notes, datasheets, and technical forums. These resources provide valuable information to assist in the development and troubleshooting process.
