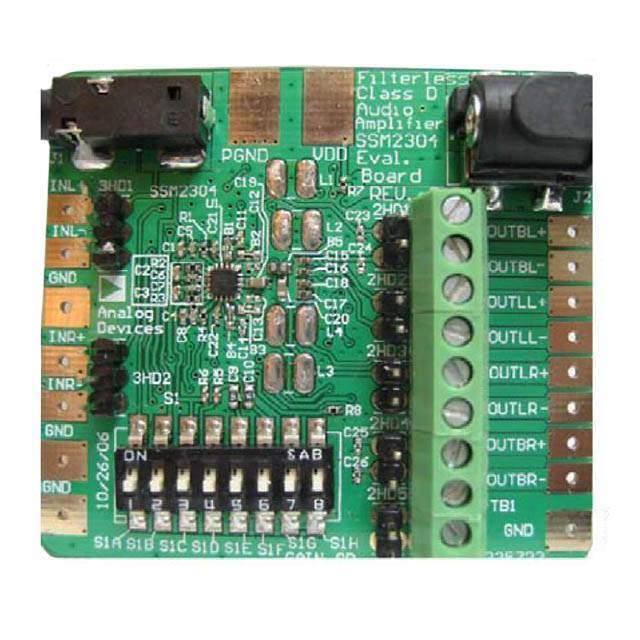

The SSM2304Z-EVAL from Analog Devices Inc. is a comprehensive evaluation platform designed for the SSM2304 low power, Class-D audio amplifier. This evaluation board allows designers and engineers to assess the full capabilities of the SSM2304 amplifier in a convenient and user-friendly environment. The SSM2304Z-EVAL is perfect for those looking to integrate high-efficiency audio amplification into their design with minimal effort and maximum performance.

Key Features

• Integrated SSM2304 Amplifier: The board comes equipped with the SSM2304, a high-performance, Class-D amplifier that delivers efficient audio amplification with reduced power losses.
• Plug and Play: Designed for ease of use, the SSM2304Z-EVAL can be quickly set up to facilitate immediate testing and experimentation.
• Flexible Power Supply Options: The evaluation board supports a wide range of power supply voltages, accommodating various application requirements.
• Comprehensive Test Points: Ample test points are provided throughout the board, allowing for in-depth analysis and monitoring of the amplifier's performance.
• On-Board Filtering: Built-in filters demonstrate the SSM2304's ability to deliver clean, high-quality audio output.
• Robust Connectivity: The board includes standard audio connectors for easy interfacing with external audio sources and output devices.

Applications

The SSM2304Z-EVAL is suited for a variety of applications where efficient and compact audio amplification is required. It is ideal for portable and battery-powered devices such as smartphones, tablets, and wireless speakers. Additionally, it can be used in educational and development settings to teach audio amplifier principles or to prototype audio systems.

Support and Documentation

Analog Devices Inc. provides extensive support for the SSM2304Z-EVAL, including detailed documentation, application notes, and reference designs. This ensures that users can maximize the potential of the evaluation board and the SSM2304 amplifier, accelerating the development process and reducing time to market.
