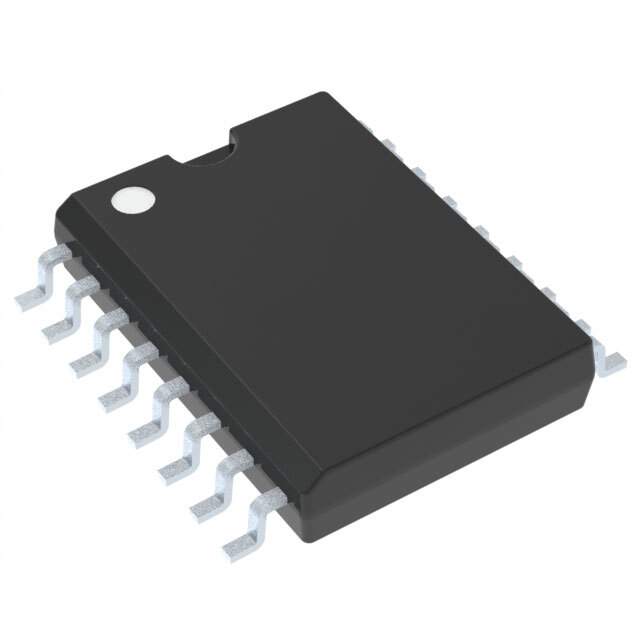

LM4863MX Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Type Class AB
Output Type 2-Channel (Stereo) with Stereo Headphones
Max Output Power x Channels @ Load 3.2W x 2 @ 3 Ohm; 440mW x 2 @ 8 Ohm
Supply Voltage - Operating 2 V to 5.5 V
Features Depop, Shutdown, Thermal Protection
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-SOIC
Dimension 16-SOIC (0.295", 7.50mm Width)
Win Source Part Number 082815-LM4863MX
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM4863MX CAD Model

Description

The LM4863MX is a high-quality, high-performance audio amplifier product from Texas Instruments, a renowned global semiconductor company.

  • Amplifier: dual bridge-connected audio power amplifier
  • Power Output: 1W/channel into an 8Ω load @ a 5V supply.
  • Series: 'Boomer' series audio power output
  • Shutdown Mode: Externally controlled, low-power consumption
  • Features: Both a power amplifier and headphone mute
  • Protection: Internal thermal shutdown protection mechanism
  • Circuitry: Advanced pop & click circuitry
  • Package: 14-pin NSOIC package
