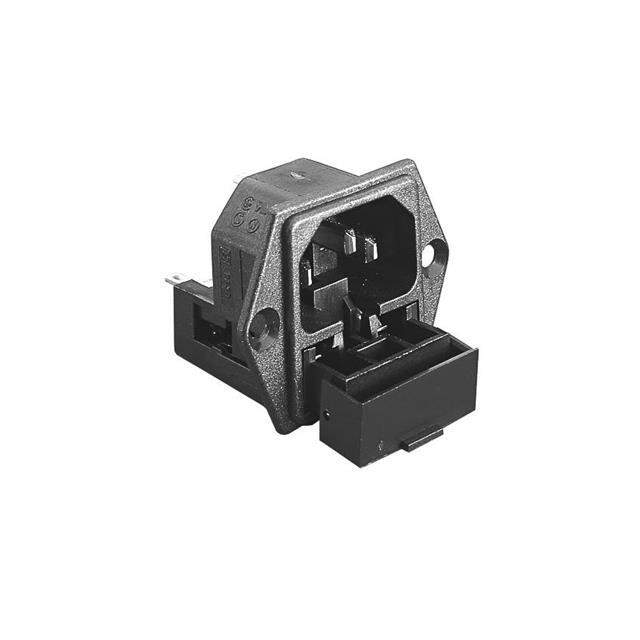

PF0030/63 Real Image
Same model may have multiple batches, images only for reference.

PF0030/63

Part No PF0030/63
Manufacturer Bulgin
Catalog Barrel - Power Connectors
Description PWR ENT MOD RCPT IEC320-C14 PNL  /  Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Datasheet
PF0030/63 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr Bulgin
Series PF
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - IEC 10A
Voltage - IEC 250VAC
Filter Type Unfiltered - Commercial
Accomodates a Fuse Yes (Fuse Not Included)
Number of Positions 3
Mounting Type Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Fuse Holder, Drawer Drawer Included, Twin Fused
Panel Cutout Dimensions Rectangular - 27.30mm x 31.12mm
Material Flammability Rating UL94 V-0
Approval Agency CSA, UL
Base Product Number PF0030
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Names Q3657737,PF003063,708-1458,PF0030/63-ND,2266-PF0030/63
Standard Package 200
Win Source Part Number 1151692-PF0030/63
Ultra Librarian 3D Model Ultra Librarian PF0030/63 CAD Model

Description

The PF0030/63 is a power entry connector manufactured by Bulgin.

  • Connector Type: Receptacle, male blades - module
  • Termination: Quick connect
  • Current Rating: 10A
  • Voltage Rating: 250VAC
  • Filtering: Unfiltered
  • Fuse: Twin fused drawer
  • Mounting: Panel mounting with a flange
  • Panel Cutout: Rectangular, 27.30mm x 31.12mm
