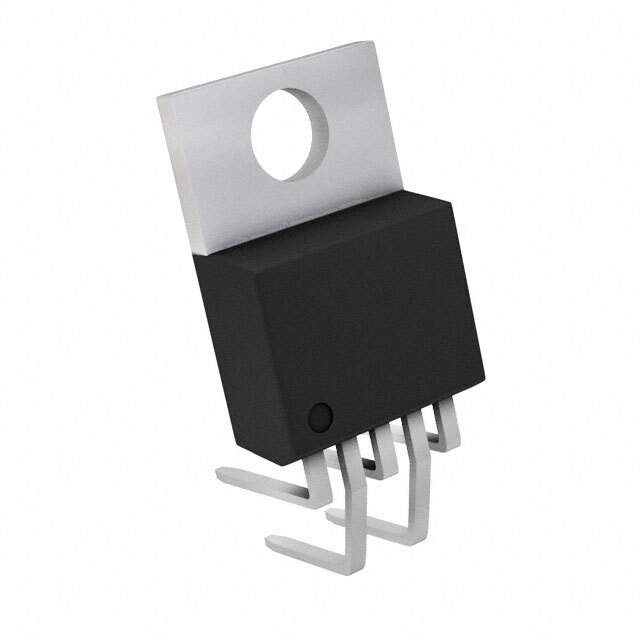

The LM1875T/LB05 from Texas Instruments is a high-fidelity audio power amplifier designed to deliver exceptional sound quality and performance for a wide range of audio applications. This versatile amplifier is capable of delivering up to 20 watts of continuous average power to an 8-ohm load with less than 0.1% total harmonic distortion (THD) from 20 Hz to 20 kHz, making it an ideal choice for high-quality audio systems.

Key Features:

• Output Power: 20 watts into an 8-ohm load or 30 watts into a 4-ohm load, ensuring sufficient power for most audio applications.
• Low Distortion: Maintains a THD+N of less than 0.1% across the audio spectrum, providing clear and accurate sound reproduction.
• Wide Frequency Response: Delivers a flat frequency response from 20 Hz to 20 kHz, which is essential for high-fidelity audio playback.
• Protection Features: Includes an output protection from a short to ground or to the supplies as well as thermal protection with parabolic limit.
• External Gain Configuration: Allows for the flexibility of setting gain levels to match specific application requirements.

Applications:

The LM1875T/LB05 is ideal for a variety of audio applications, including:

• High-end stereo receivers
• Compact stereo amplifiers
• Self-powered speakers
• Surround-sound amplifiers
• Bridge amplifiers

Quality and Reliability:

Texas Instruments is known for its commitment to quality and reliability, and the LM1875T/LB05 is no exception. Built with the expertise of one of the leading semiconductor companies, this audio amplifier is designed to perform consistently over time, ensuring a lasting addition to any audio equipment.

Whether you're an audio enthusiast looking to build a custom amplifier or a manufacturer seeking a reliable component for mass production, the LM1875T/LB05 offers the performance and features necessary to meet a wide range of audio amplification needs.
