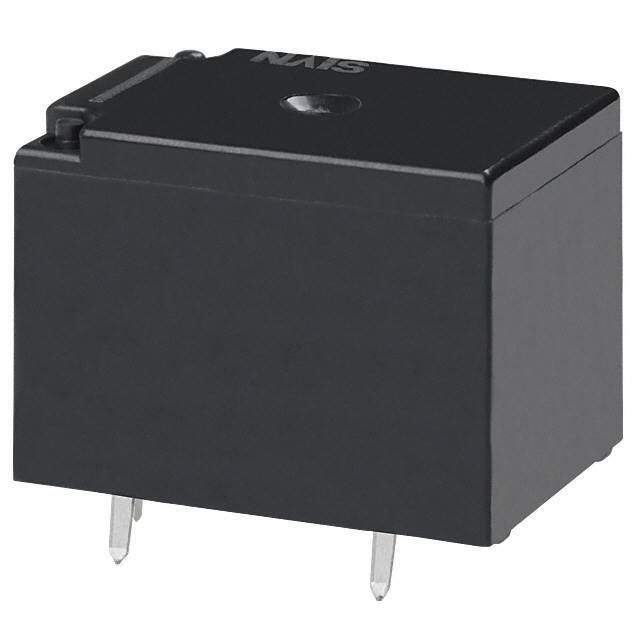

JSM1A-12V-5 Real Image
Same model may have multiple batches, images only for reference.

JSM1A-12V-5

Part No JSM1A-12V-5
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY AUTOMOTIVE SPST 15A 12V /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Automotive Relays
Mfr Panasonic Electric Works
Series JS-M
Package Bulk
Product Status Obsolete
Coil Type Non Latching
Coil Current 53.3 mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 15 A
Switching Voltage 16VDC - Max
Must Operate Voltage 6.3 VDC
Must Release Voltage 0.9 VDC
Operate Time 10 ms
Release Time 10 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 640mW
Coil Resistance 225 Ohms
Base Product Number JSM1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names JSM1A-12V-5-ND,255-2815,JSM1A12V5,-JSM1A-12V,JSM1A-12V-5-NDR
Standard Package 100
Win Source Part Number 1006053-JSM1A-12V-5
Ultra Librarian 3D Model Ultra Librarian JSM1A-12V-5 CAD Model

Description

The JSM1A-12V-5 is an obsolete automotive relay that has a contact rating of 15A and a switching voltage of 16VDC and manufactured by Panasonic Electric Works.

  • Contact Rating: 15A
  • Switching Voltage: 16VDC
  • Coil Voltage: 12VDC
  • Coil Resistance: 225 Ohms
  • Contact Form: SPST-NO (1 Form A)
  • Coil Type: Non-Latching
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
  • Status: Obsolete
