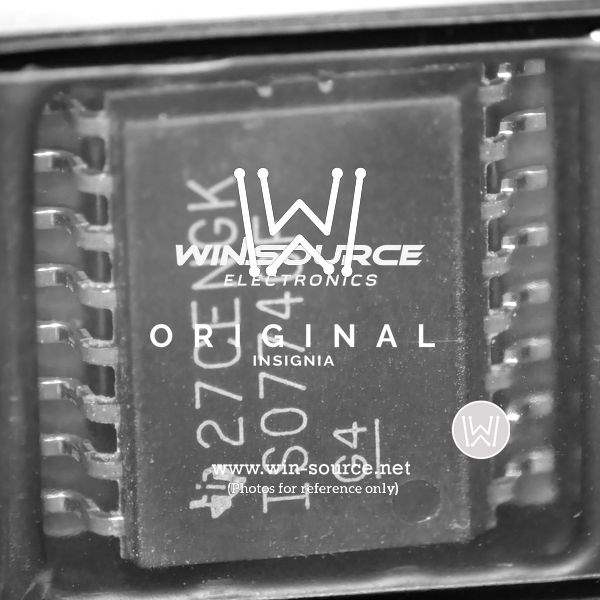

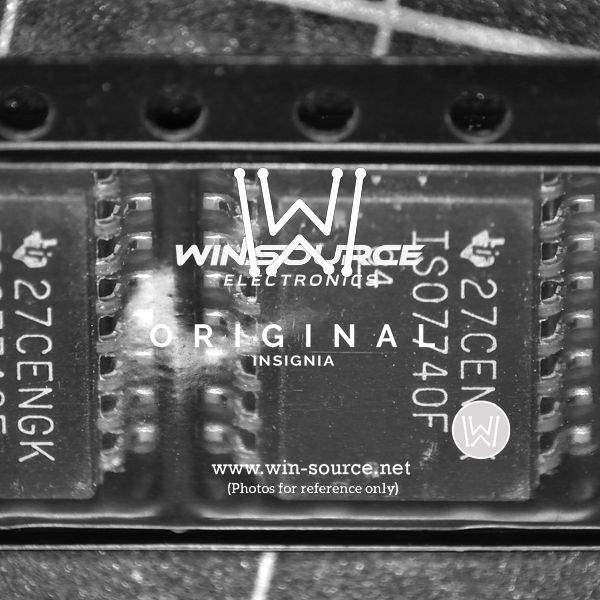

Product Overview: Texas Instruments ISO7740FDWR

The ISO7740FDWR from Texas Instruments is a high-performance, quad-channel digital isolator crafted to offer exceptional signal integrity and isolation for a wide variety of applications. This robust component is designed to improve system reliability and provide protection against high-voltage spikes and transients in industrial, medical, and other environments where signal integrity and isolation are critical.

Key Features

• Robust Isolation: With an isolation voltage of 5000 Vrms for 1 minute, the ISO7740FDWR ensures that electronic equipment remains safe from high voltage transients, thereby maintaining signal fidelity and protecting sensitive circuitry.
• High-Speed Performance: The device supports data rates up to 100 Mbps, making it suitable for high-speed communication without compromising data integrity.
• Low Power Consumption: Designed for efficiency, it operates with low power consumption, which is essential for energy-sensitive applications.
• Quad-Channel Configuration: The four independent isolation channels can be used in various configurations such as four forward channels, or two forward and two reverse-direction channels, providing design flexibility.
• Wide Temperature Range: Reliable operation is guaranteed over a broad temperature range from -40°C to +125°C, accommodating extreme environmental conditions.

Applications

The ISO7740FDWR is ideal for use in a range of applications, including:

• Industrial automation and control systems
• Medical equipment with stringent isolation requirements
• Renewable energy systems and inverters
• Motor drives and power converters
• Isolated CAN and SPI communication interfaces

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the ISO7740FDWR is no exception. It is available in a wide-body 16-pin SOIC package, providing ample creepage and clearance for high-voltage applications. The device is also compliant with key industry standards, ensuring it meets the rigorous demands of professional applications.
