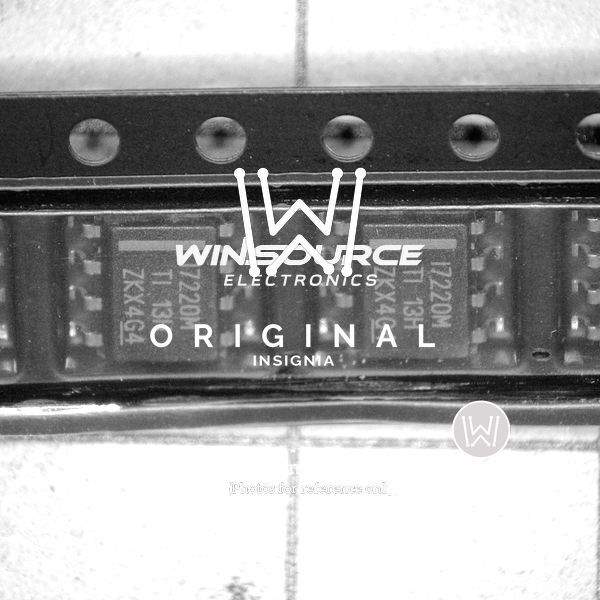

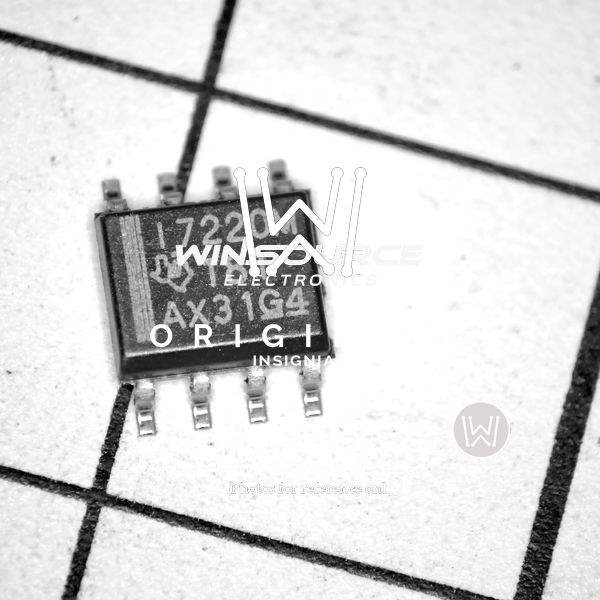

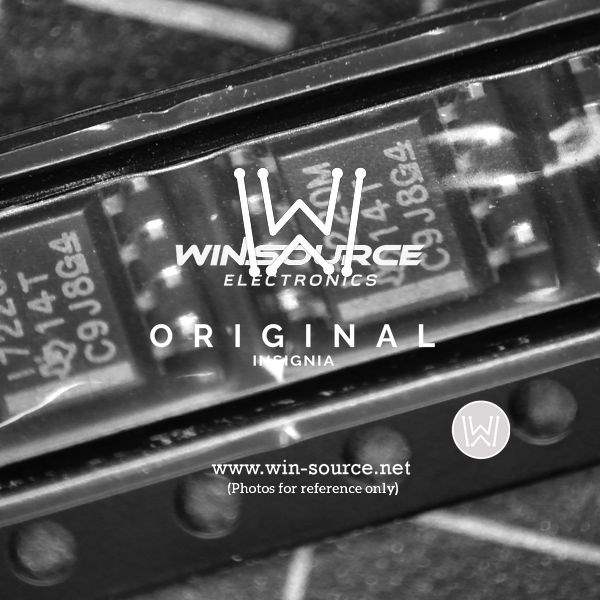

ISO7220MDR Real Image ISO7220MDR real image561 ISO7220MDR Real Image1 ISO7220MDR Real Image2
Same model may have multiple batches, images only for reference.
ISO7220MDR Real Image ISO7220MDR real image561 ISO7220MDR Real Image1 ISO7220MDR Real Image2
ISO7220MDR Real Image ISO7220MDR real image561 ISO7220MDR Real Image1 ISO7220MDR Real Image2
Same model may have multiple batches, images only for reference.

ISO7220MDR

Part No ISO7220MDR
Manufacturer Texas Instruments
Catalog Digital Isolators
Description DGTL ISO 2.5KV GEN PURP 8SOIC
Datasheet
ISO7220MDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Channel Type Unidirectional
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Data Rate 150Mbps
Propagation Delay tpLH / tpHL (Max) 16ns, 16ns
Pulse Width Distortion (Max) 1ns
Rise and Fall Time 1ns, 1ns
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Case / Package 8-SOIC
Win Source Part Number 002045-ISO7220MDR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ISO7220MDR CAD Model

Description

The ISO7220MDR is a high-performance, dual-channel digital isolator product from the globally renowned semiconductor manufacturing company, Texas Instruments.

  • Isolation: Up to 2500Vrms for 1 minute per UL 1577
  • Power Consumption: 1.5mA per channel @ 1Mbps
  • Data Rates: Up to 1Mbps
  • Package: 8-pin SOIC
  • Operational Temperatures: -40°C to +125°C
