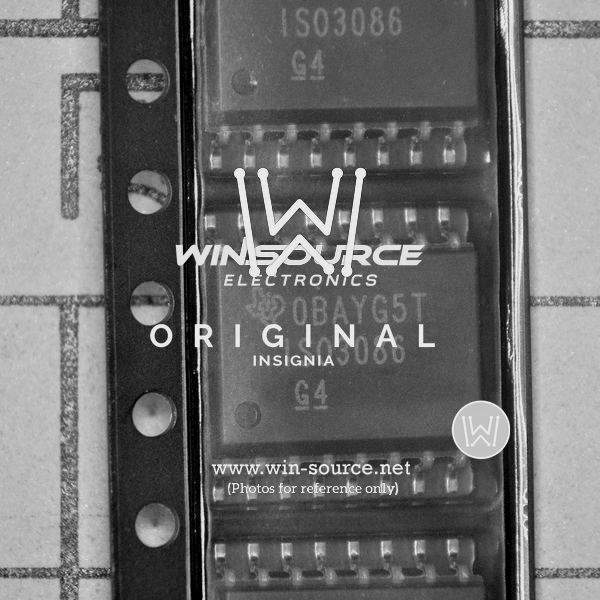

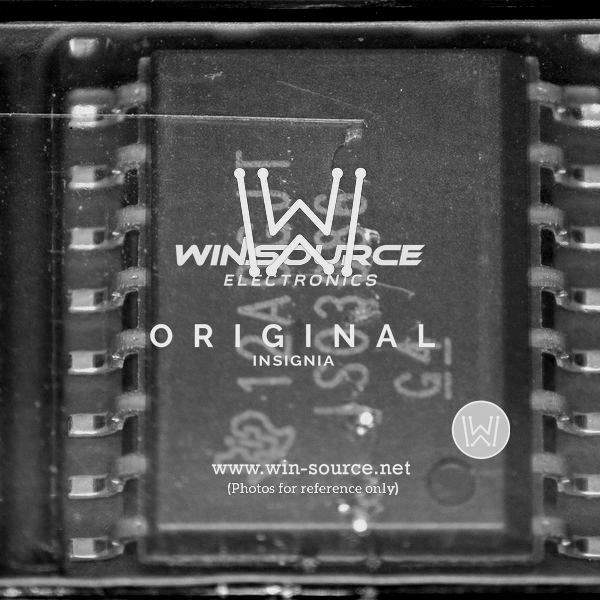

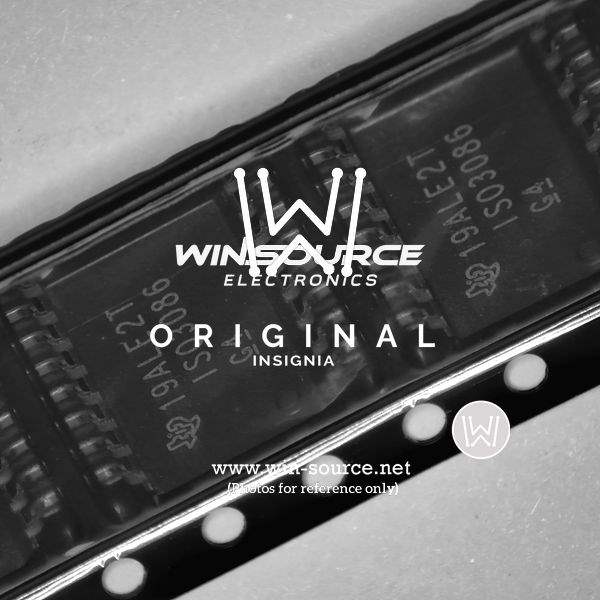

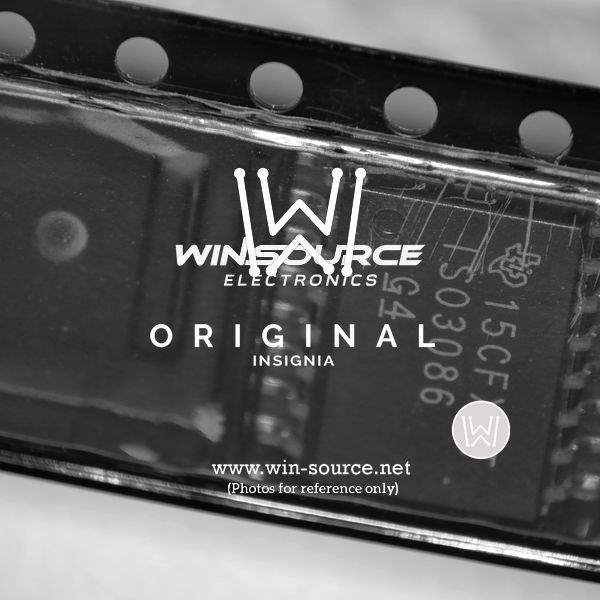

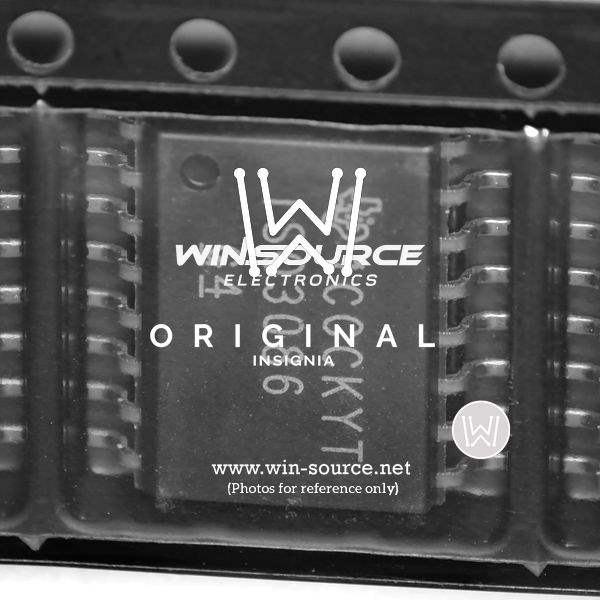

ISO3086DWR Real Image ISO3086DWR real image552 ISO3086DWR real image553 ISO3086DWR Real Image1 ISO3086DWR Real Image2 ISO3086DWR Real Image3 ISO3086DWR Real Image4 ISO3086DWR Real Image5
Same model may have multiple batches, images only for reference.
ISO3086DWR Real Image ISO3086DWR real image552 ISO3086DWR real image553 ISO3086DWR Real Image1 ISO3086DWR Real Image2 ISO3086DWR Real Image3 ISO3086DWR Real Image4 ISO3086DWR Real Image5
ISO3086DWR Real Image ISO3086DWR real image552 ISO3086DWR real image553 ISO3086DWR Real Image1 ISO3086DWR Real Image2 ISO3086DWR Real Image3 ISO3086DWR Real Image4 ISO3086DWR Real Image5
Same model may have multiple batches, images only for reference.

ISO3086DWR

Part No ISO3086DWR
Manufacturer Texas Instruments
Catalog Digital Isolators
Description DG ISO 2.5KV RS422/RS485 16SOIC / Single Transmitter/Receiver RS-485 16-Pin SOIC T/R
Datasheet
ISO3086DWR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Technology Capacitive Coupling
Type RS422, RS485
Isolated Power No
Number of Channels 3
Inputs - Side 1/Side 2 2/1
Channel Type Unidirectional
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Data Rate 20Mbps
Supply Voltage - Operating 3.15 V to 5.5 V, 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Case / Package 16-SOIC
Win Source Part Number 018119-ISO3086DWR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Motor Drive & Control, HVAC
Family Name ISO3086
Introduction Date April 01, 2008
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian ISO3086DWR CAD Model

Description

The ISO3086DWR is a high-performance, robust product from Texas Instruments, a world-renowned American technology company that designs and manufactures semiconductors and various integrated circuits.

  • Category: Interface ICs, robust isolated half-duplex RS-485 transceiver
  • Insulation: Silicon dioxide (SiO2) insulation barrier with 5000 Vrms withstand voltage per UL1577
  • Data Rate: Up to 20 Mbps
  • Feature: Robust electromagnetic compatibility (EMC) performance
  • Temperature Range: -40°C to 125°C
  • Safety Feature: Fail-safe receiver
  • Safety Feature: Overcurrent protection
  • Package: Compact surface-mount SOIC (Small Outline Integrated Circuit)
  • Compliance: RoHS compliant
