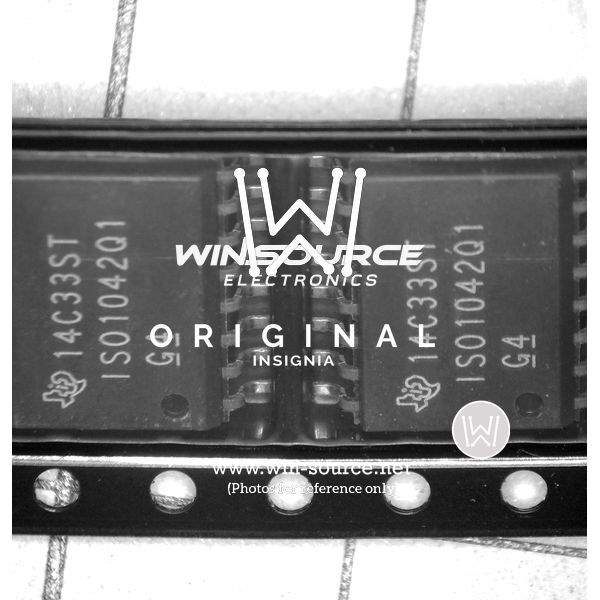

The ISO1042QDWRQ1 from Texas Instruments is a high-performance, automotive-grade isolated Controller Area Network (CAN) transceiver that serves as a critical interface between the CAN controller and the physical two-wire CAN bus. Designed to meet the rigorous demands of automotive and industrial communication networks, the ISO1042QDWRQ1 provides robust signal isolation and improves system reliability.

Key Features

• Isolation Ratings: With a working voltage of 1kV RMS and transient immunity of 12.8 kV/μs, this component ensures reliable operation in electrically noisy environments.
• High Bus Fault Protection: It can withstand bus fault events up to ±70V, offering enhanced protection against electrical hazards.
• Low Loop Delay: A typical propagation delay of 76 ns ensures timely data transmission, which is crucial for real-time applications.
• Temperature Range: Operating temperature ranges from -40°C to +125°C, suitable for harsh automotive environments.
• Package Type: Supplied in a 16-pin SOIC (DWR) package that is optimized for space-constrained applications.

Applications

The ISO1042QDWRQ1 is designed for use in a variety of applications within the automotive sector, including but not limited to:

• Electric and hybrid powertrains
• Body control modules
• Advanced driver-assistance systems (ADAS)
• On-board diagnostics and telematics

Quality and Reliability

As part of Texas Instruments' Q1 series of automotive products, the ISO1042QDWRQ1 meets stringent quality standards, including AEC-Q100 qualification. It also features fail-safe measures that ensure a low-level output is maintained in the absence of input signals, contributing to the overall safety of the system it is integrated into.

Summary

The ISO1042QDWRQ1 stands out as a robust, high-speed isolated CAN transceiver, offering exceptional signal integrity and protection for automotive CAN networks. Its combination of high isolation, fault protection, and low propagation delay makes it an ideal choice for critical automotive applications where reliability and performance are paramount.
