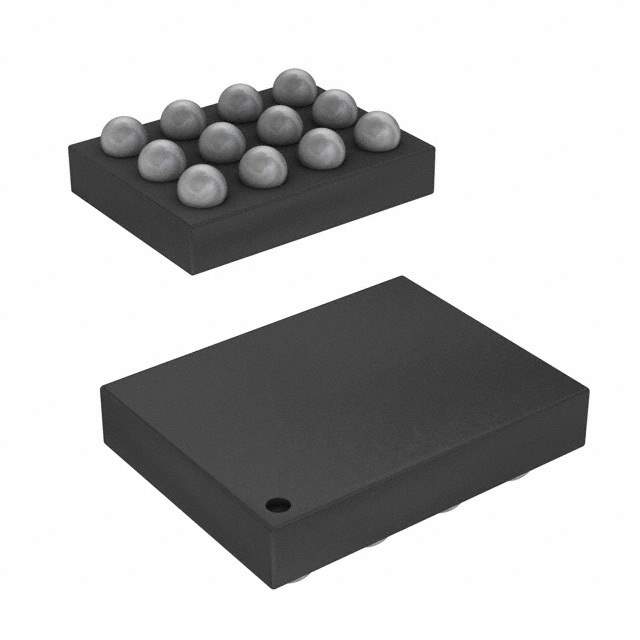

Product Overview: Texas Instruments INA231BIYFDR

The Texas Instruments INA231BIYFDR is a state-of-the-art current shunt and power monitor with an I2C-compatible interface. This high-precision device offers industry-leading performance for monitoring power supply and consumption in battery-powered and energy-efficient applications. Its compact form factor and advanced features make it an ideal solution for a wide range of products, including portable devices, consumer electronics, and industrial systems.

Key Features and Benefits

• High Accuracy: The INA231BIYFDR provides high-accuracy measurements of voltage, current, and power, making it suitable for precise power monitoring.
• Wide Common-Mode Range: With a common-mode voltage range of 0 to 28V, it can be used in various systems without the need for additional level shifting.
• Programmable Calibration Value: Users can program the calibration value to optimize performance for different shunt resistor values and applications.
• Configurable Averaging Options: The device offers multiple averaging options, allowing users to trade-off between measurement resolution and speed.
• Low Quiescent Current: It features a low quiescent current, which is critical for power-sensitive applications.
• Alert Function: An integrated alert function can be configured to trigger on overcurrent, undercurrent, or other power-related events, enhancing system protection.
• I2C Interface: The I2C-compatible interface supports standard, fast, and high-speed modes for flexible communication with microcontrollers or other I2C devices.

Applications

The INA231BIYFDR is versatile and can be used in a variety of applications, including:

• Smartphones, tablets, and wearable technology
• Wireless routers and network equipment
• Energy management systems
• Battery chargers and management
• Power supplies and DC/DC converters
• Industrial and automotive systems

With its high accuracy and low power consumption, the Texas Instruments INA231BIYFDR is an excellent choice for designers looking to enhance the performance and efficiency of their power monitoring systems. Its robust feature set ensures that it can meet the requirements of even the most demanding applications.
