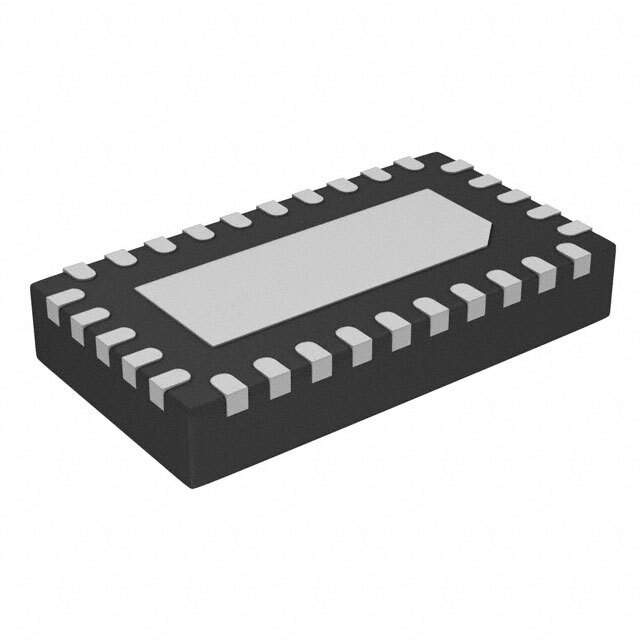

Introducing the Texas Instruments HD3SS460IRNHR USB Type-C™ Switch

The Texas Instruments HD3SS460IRNHR is a versatile and high-performance USB Type-C™ and USB Power Delivery (PD) 2.0 compliant switch designed to enable a reversible USB Type-C connector orientation for connections to USB 2.0, USB 3.0, and DisplayPort devices. This state-of-the-art switch is an ideal solution for various applications including laptops, desktops, smartphones, and tablets that require efficient and reliable switching between different data and display protocols.

Key Features

• USB Type-C and PD 2.0 Compliance: The HD3SS460IRNHR adheres to the latest USB Type-C and USB Power Delivery specifications, ensuring compatibility with a wide range of devices and enabling a future-proof connection.
• High-speed Data Transfer: With support for USB 3.0 SuperSpeed data rates of up to 5 Gbps, this switch facilitates rapid data transfer between connected devices, making it ideal for high-bandwidth applications.
• DisplayPort Alt Mode Support: The device is capable of switching DisplayPort signals, allowing for video output to a display through the USB Type-C connector using the Alternate Mode feature.
• Multiplexing Capability: The HD3SS460IRNHR can multiplex USB 3.0 or DisplayPort signals, providing the flexibility to switch between data or video through a single USB Type-C port.
• Enhanced Power Management: The switch is designed to manage power delivery efficiently, ensuring devices receive the appropriate power levels for optimal performance.

Applications

The HD3SS460IRNHR is suitable for a variety of applications across multiple industries. It is particularly useful in:

• Docking stations
• Monitors with USB Type-C connectivity
• Portable computing devices like laptops and tablets
• Smartphones with USB Type-C ports

Reliability and Quality

As with all Texas Instruments products, the HD3SS460IRNHR is built to the highest quality standards. Its robust design ensures long-term reliability and performance in a range of operating conditions. Whether you are developing consumer electronics or industrial applications, you can trust the HD3SS460IRNHR to provide seamless and efficient USB Type-C switching capabilities.

For detailed technical specifications, application notes, and support resources, visit the Texas Instruments website or contact their customer support team.
