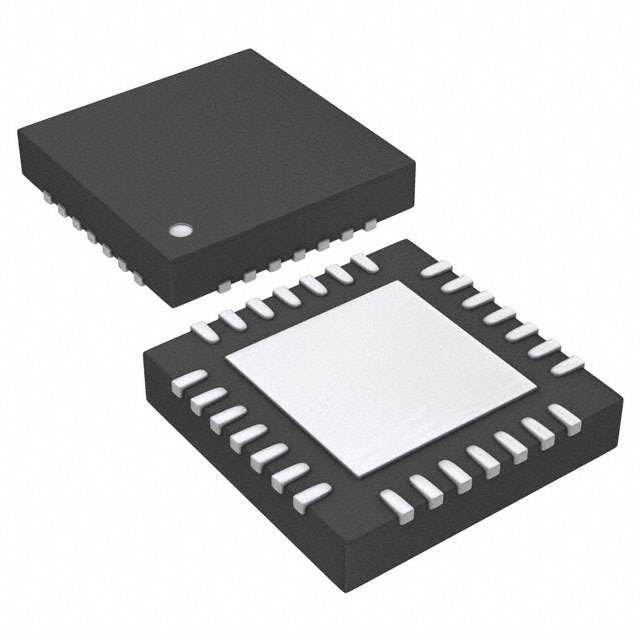

DRV8824RHDR Real Image
Same model may have multiple batches, images only for reference.

DRV8824RHDR

Part No DRV8824RHDR
Manufacturer Texas Instruments
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 28-VQFN
Datasheet
DRV8824RHDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Power MOSFET
Step Resolution 1 to 1/32
Applications General Purpose
Output Current 1.6A
Supply Voltage - Operating 8.2 V to 45 V
Voltage - Load 8.2 V to 45 V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 28-VQFN (5x5)
Win Source Part Number 040090-DRV8824RHDR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DRV8824RHDR CAD Model

Description

Overview of DRV8824RHDR

The DRV8824RHDR is a compact and efficient stepper motor driver IC, perfect for applications requiring accurate motor positioning. Its robust performance makes it suitable for demanding projects.

  • Applications:
    • Textile machinery
    • Automated kiosks
    • Precision plotters
  • Features and Benefits:
    • High precision with micro-stepping capabilities
    • Compact footprint and high efficiency
    • Thermal shutdown protection for device safety
  • Additional Details: Maximum operating voltage: 45V; Max current: 1.5A per phase
