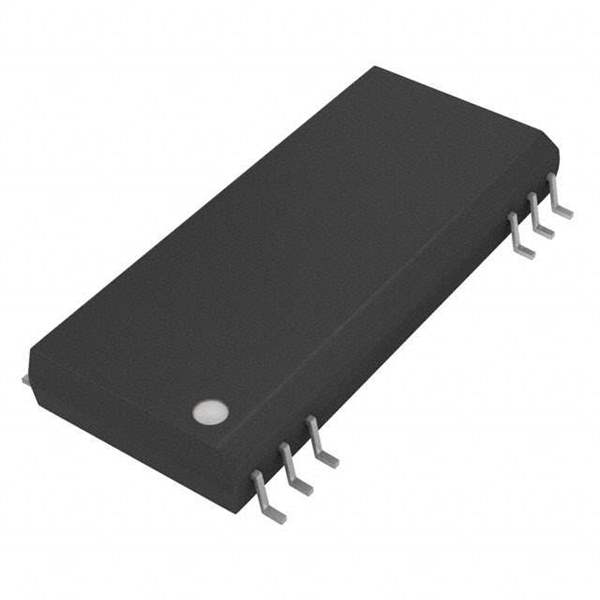

DCR010505U Real Image DCR010505U real image3230 DCR010505U Real Image1 DCR010505U Real Image2 DCR010505U Real Image3 DCR010505U Real Image4 DCR010505U Real Image5 DCR010505U Real Image6 DCR010505U Real Image7 DCR010505U Real Image8 DCR010505U Real Image9
Same model may have multiple batches, images only for reference.
DCR010505U Real Image DCR010505U real image3230 DCR010505U Real Image1 DCR010505U Real Image2 DCR010505U Real Image3 DCR010505U Real Image4 DCR010505U Real Image5 DCR010505U Real Image6 DCR010505U Real Image7 DCR010505U Real Image8 DCR010505U Real Image9
DCR010505U Real Image DCR010505U real image3230 DCR010505U Real Image1 DCR010505U Real Image2 DCR010505U Real Image3 DCR010505U Real Image4 DCR010505U Real Image5 DCR010505U Real Image6 DCR010505U Real Image7 DCR010505U Real Image8 DCR010505U Real Image9
Same model may have multiple batches, images only for reference.

DCR010505U

Part No DCR010505U
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED 5V 0.2A 12SOP
Datasheet
DCR010505U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCR01
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features Remote On/Off, OTP, SCP
Mounting Style SMD/SMT
Package 28-SOIC (0.295", 7.50mm Width) 12 Leads
Size / Dimension 0.70" L x 0.41" W x 0.10" H (17.9mm x 10.3mm x 2.5mm)
Operating Temperature Range -40°C ~ 85°C
Power (Watts) - Max 1W
Win Source Part Number 013877-DCR010505U
Family Name DCR010505
Introduction Date September 01, 2005
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian DCR010505U CAD Model

Description

DCR010505U - Efficient DC-DC Converter

The DCR010505U is meticulously crafted to serve high-demand power isolation needs. It combines top-tier performance with proven reliability, making it ideal for a broad spectrum of professional and industrial uses.

  • Voltage Input/Output: 5V/5V
  • Power Handling: 1W
  • Isolation Voltage: 1500V

Features and Benefits:

  • Superior efficiency for reduced thermal footprint
  • Compact design, facilitating easy integration
  • Automated safety features for protection
  • Adaptable temperature operations catering to diverse settings

Applications:

  • Embedded power supply systems
  • Telecom hardware
  • Audio-visual equipment
  • Sensor network systems
