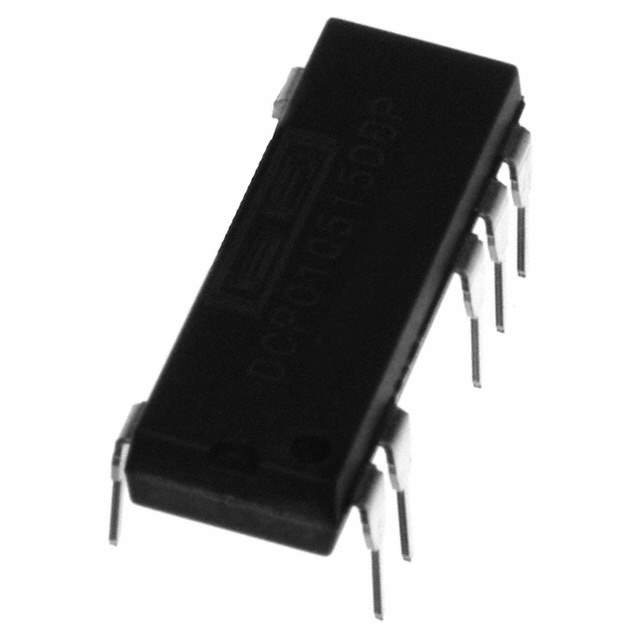

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Texas Instruments
Series DCP02
Packaging Tube
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 21.6V
Voltage Input MAX 26.4V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Maximum) 200mA, 200mA
Power (Watts) 2W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP
Operating Temperature Range -40°C ~ 85°C
Efficiency 80%
Mounting Style Through Hole
Package 14-DIP Module (0.300", 7.62mm), 7 Leads
Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Manufacturer Package 7-PDIP
Win Source Part Number 772534-DCP022405DP
Popularity Medium
Supply and Demand Status Limited
Family Name DCP022405D
Introduction Date February 01, 2006
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian DCP022405DP CAD Model

Description

The DCP022405DP is a highly integrated module from Texas Instruments, designed to offer a compact and efficient DC-DC power conversion solution. This product is part of the DCP02 series, which is renowned for its reliability and performance in a wide range of applications, including industrial control systems, distributed power systems, and mixed analog/digital subsystems.

With an input voltage range of 4.5V to 5.5V, the DCP022405DP provides a dual output of ±5V, which is ideal for powering operational amplifiers, analog-to-digital converters, and other precision analog circuitry. The module boasts an impressive isolation rating of 1kV DC, ensuring that sensitive components are protected from high voltage transients and enhancing system reliability.

The DCP022405DP features a high-efficiency design, with a typical efficiency of 85%, minimizing power loss and heat generation. This makes it suitable for use in space-constrained applications where thermal management is a critical consideration. Furthermore, the module's small footprint allows for ease of integration into existing designs without the need for significant layout changes.

One of the key advantages of the DCP022405DP is its ease of use. The module requires minimal external components, which simplifies the design process and accelerates time-to-market for products incorporating this module. Additionally, the fully integrated magnetics reduce electromagnetic interference (EMI), further simplifying the design process by reducing the need for additional filtering components.

Texas Instruments has equipped the DCP022405DP with over-temperature and short-circuit protection, enhancing the safety and durability of the module. These features, combined with the product's robust construction and high-quality materials, make the DCP022405DP a reliable choice for demanding applications that require a stable and isolated power supply.

Overall, the DCP022405DP from Texas Instruments represents a versatile and dependable solution for designers seeking a high-performance isolated DC-DC converter. Its combination of high efficiency, compact design, and integrated features make it an excellent choice for a wide array of electronic applications.
