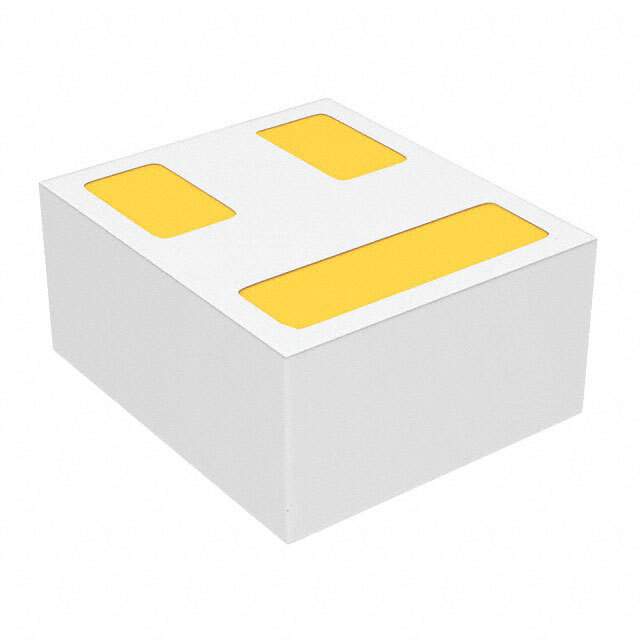

The CSD25480F3 is a state-of-the-art Field-Effect Transistor (FET) designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This FET is part of the NexFET™ product line, which is known for its power efficiency and performance. The device is housed in a compact 3-pin package, making it suitable for applications where space is at a premium.

Key Features

• Ultra-Low On-Resistance: The CSD25480F3 features an ultra-low on-resistance (R<sub>DS(on)) which significantly reduces power loss and improves efficiency in power management circuits.
• High Continuous Drain Current: With a high continuous drain current (I<sub>D), this FET can handle a substantial amount of current, making it ideal for demanding applications.
• Advanced Thermal Performance: The device's excellent thermal characteristics ensure reliable performance even under high temperature conditions.
• Compact Footprint: The small 3-pin footprint of the CSD25480F3 allows for high-density PCB layouts and is perfect for portable electronics where space is a constraint.

Applications

The versatility of the CSD25480F3 makes it suitable for a wide range of applications, including:

• Power supply circuits
• DC/DC converters
• Battery management systems
• Load switches
• Motor control modules

Technical Specifications

Parameter Value V<sub>DS (Drain-Source Voltage) 25 V R<sub>DS(on) (Typ) 8.8 mΩ I<sub>D (Continuous Drain Current) 15 A Package SON-3

Conclusion

The CSD25480F3 from Texas Instruments is a powerful solution for designers looking to improve efficiency and performance in their power management systems. With its low on-resistance, high current capability, and compact form factor, this FET is an excellent choice for a multitude of electronic applications.
