Same model may have multiple batches, images only for reference.

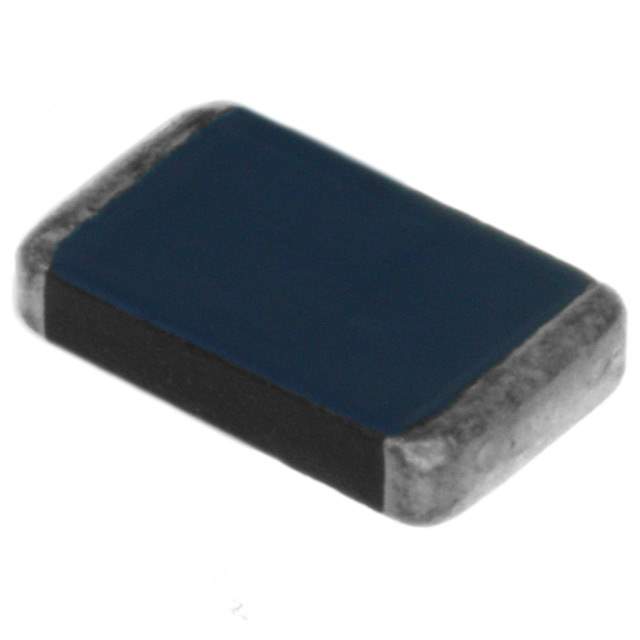

V56CH8 Real Image
Same model may have multiple batches, images only for reference.

V56CH8

Part No V56CH8
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 56V 100A 2SMD
Datasheet
V56CH8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Varistor Voltage (Min) 50V
Varistor Voltage (Typ) 56V
Varistor Voltage (Max) 62V
Current - Surge 100A
Energy 1.4J
Number of Circuits 1
Maximum AC Volts 35VAC
Maximum DC Volts 45VDC
Capacitance @ Frequency 600pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting Surface Mount, MLCV
Dimension 2-SMD, No Lead
Win Source Part Number 112713-V56CH8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian V56CH8 CAD Model

Description

The Littelfuse Inc. 112713-V56CH8 is a surface mount, multilayer ceramic varistor designed to protect electronic circuits from voltage surges and spikes.

  • Capacitance: 600pF @ 1MHz
  • Varistor Voltage Range: 50V to 62V
  • Maximum Surge Current: 100A
  • Maximum AC Voltage: 35VAC
  • Maximum DC Voltage: 45VDC
  • Energy Rating: 1.4J
  • Operating Temperature Range: -55°C to 125°C
  • Package: 2-SMD, no-lead
  • This varistor is ideal for: use in circuit protection applications.
