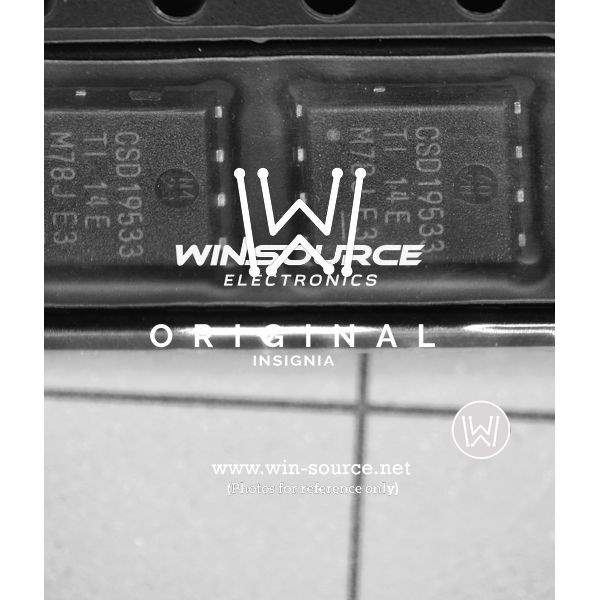

The Texas Instruments CSD19533Q5A is a state-of-the-art N-Channel NexFET™ power MOSFET designed to deliver high efficiency and performance for a wide range of applications. This power MOSFET is well-suited for use in power management solutions, including DC/DC conversion, motor drives, and other power-intensive applications that require high efficiency and power density.

Key Features

• Low R_DS(on): The device boasts an ultra-low drain-to-source on-resistance of only 3.3 mΩ at V_GS = 10V, minimizing conduction losses and enhancing overall efficiency.
• High Continuous Drain Current (I_D): With a continuous drain current of 100 A, the CSD19533Q5A can handle high current loads, making it ideal for demanding applications.

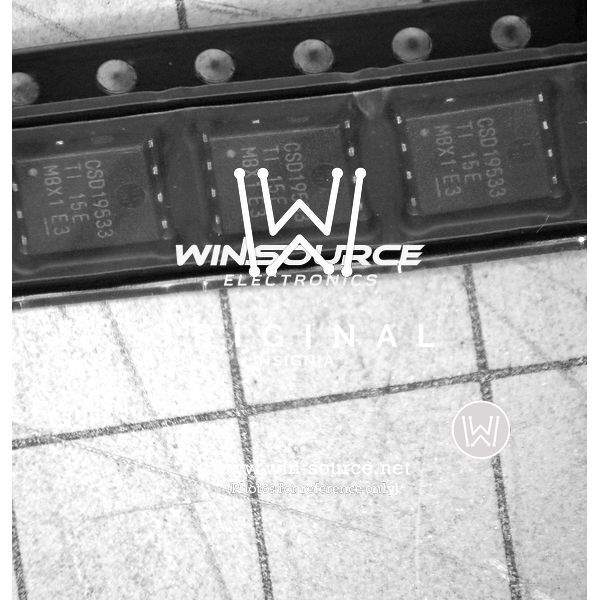

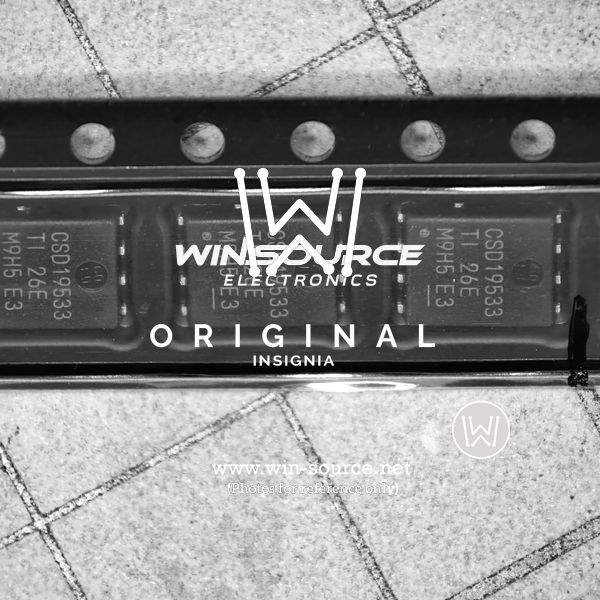

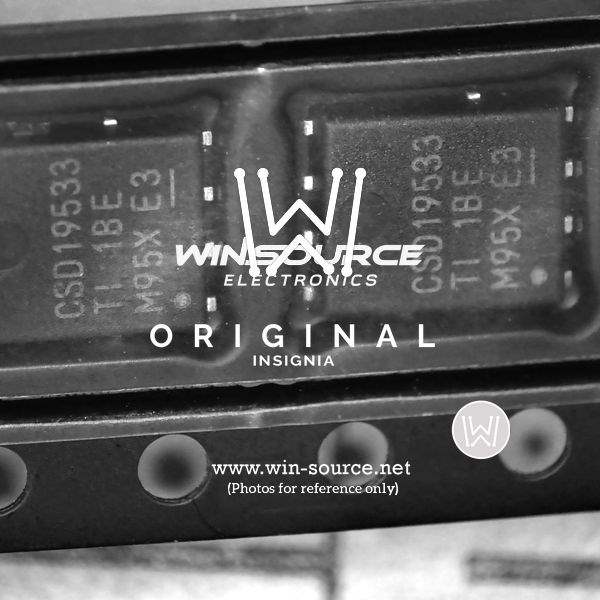

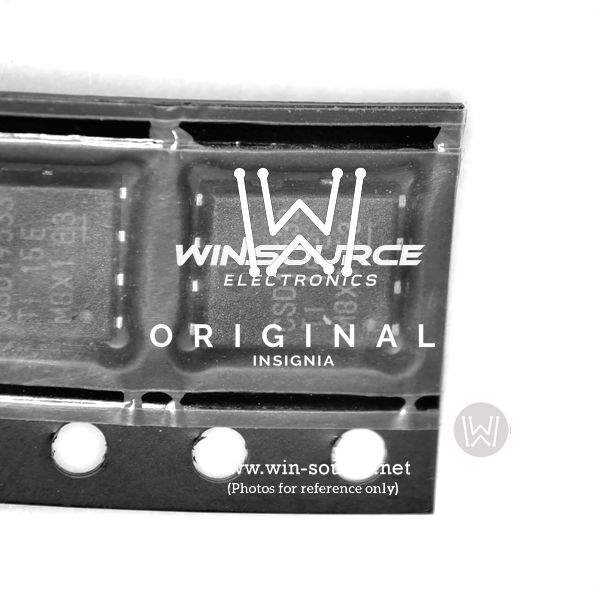

• Advanced Packaging: Encapsulated in a compact 5 mm x 6 mm SON package, the CSD19533Q5A offers excellent thermal performance and a small footprint, suitable for space-constrained designs.
• Fast Switching: The MOSFET's fast switching capabilities ensure reduced switching losses and are particularly beneficial in high-frequency power conversion systems.

Applications

The CSD19533Q5A is versatile and can be used in various applications, including:

• Server and telecom power supplies
• Industrial power supplies
• DC/DC converters
• Motor control circuits
• Point-of-load modules
• Battery management systems

Quality and Reliability

As with all Texas Instruments products, the CSD19533Q5A is manufactured to the highest quality standards, ensuring reliability and performance in critical applications. The device is RoHS compliant and is designed to meet the rigorous demands of industrial and commercial use.

Conclusion

The Texas Instruments CSD19533Q5A N-Channel NexFET™ power MOSFET is a high-performance solution for designers looking to improve power efficiency and density in their applications. With its low on-resistance, high current capacity, and fast switching speeds, it stands out as a superior choice for a wide range of power management tasks.
