Products specifications

Categories RF/IF and RFID
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type TxRx Only
RF Family/Standard General ISM
Modulation 2FSK, ASK, GFSK, MSK, OOK
Frequency 300MHz to 348MHz, 400MHz to 464MHz, 800MHz to 928MHz
Data Rate (Max) 500kBaud
Power - Output 10dBm
Sensitivity -111dBm
Serial Interfaces SPI
Supply Voltage - Operating 1.8 V to 3.6 V
Current - Receiving 13.9mA to 15.9mA
Current - Transmitting 12.3mA to 31.1mA
Temperature Range - Operating -40°C to 85°C

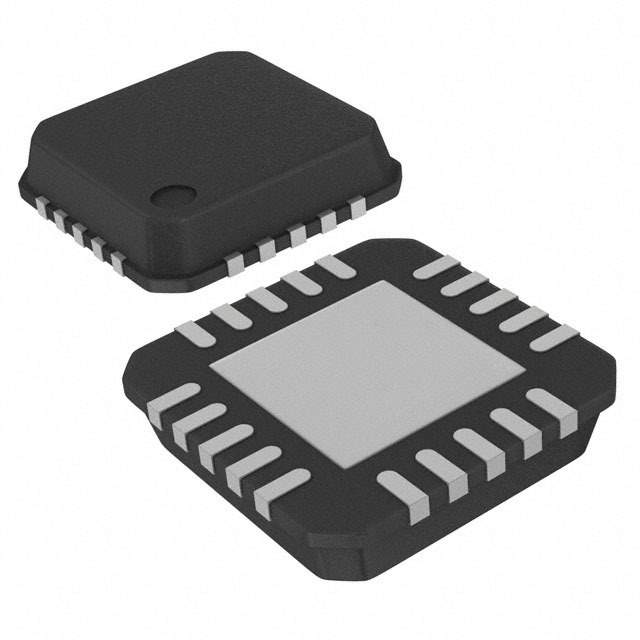

Dimension 20-VFQFN Exposed Pad
Win Source Part Number 012745-CC1100RTKR
Family Name CC1100
Introduction Date April 25, 2005
ECCN EAR99
Country of Origin Singapore
Halogen Free Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CC1100RTKR CAD Model

Description

Description

The CC1100RTKR is a sub-1 GHz Transceiver designed for low-power wireless applications. Manufactured with advanced RF capabilities, it ensures robust wireless communication in various conditions.

Features & Benefits

  • Frequency range: 300-348 MHz, 387-464 MHz, and 779-928 MHz
  • High Sensitivity: -110 dBm at data rate 1.2 kBaud
  • Low current consumption: Rx: 16.1 mA
  • Programmable data rate up to 500 kBaud
  • Efficient spectrum utilization with adjustable channel spacing

Applications & Projects

  • Wireless metering
  • Security and alarm systems
  • Wireless sensor networks
  • Industrial monitoring and control
  • Remote controls

Additional Details

The CC1100RTKR offers excellent immunity to interference and can be used effectively in dense environments. Its versatility and low power consumption make it ideal for battery-operated devices.
