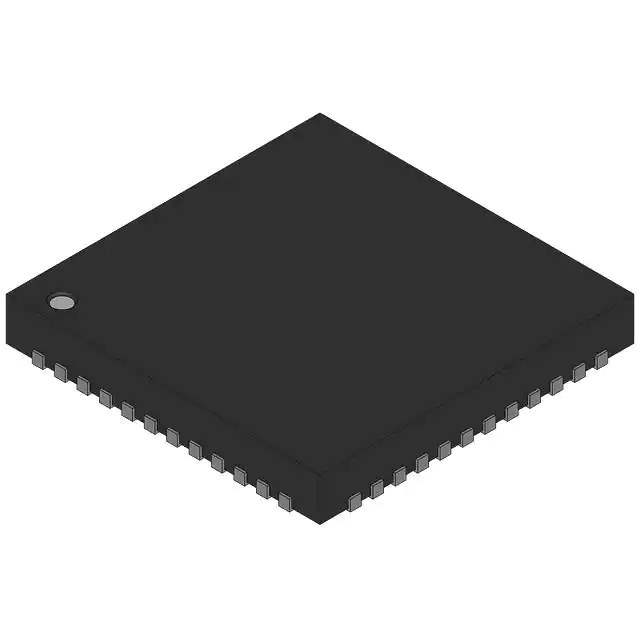

QN9080CHNY Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr NXP
Package Bulk
Product Status Active
Programmable Not Verified
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v5.0
Frequency 2.4GHz
Power - Output 2dBm
Sensitivity -95dBm
Memory Size 512kB Flash, 256kB ROM, 128kB SRAM
Serial Interfaces I2C, SPI, UART, USART, USB
GPIO 35
Voltage - Supply 1.62V ~ 3.6V
Current - Receiving 3.5mA
Current - Transmitting 3.5mA
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 48-VFQFN Exposed Pad
Supplier Device Package 48-HVQFN (6x6)
Base Product Number QN9080
Standard Package 1 pcs
ECCN 5A992C
HTSUS 8542.39.0001
Win Source Part Number 850334-QN9080CHNY
Ultra Librarian 3D Model Ultra Librarian QN9080CHNY CAD Model

Description

The QN9080CHNY is an RF transceiver IC that includes a microcontroller unit (MCU).

  • Frequency: 2.4GHz
  • Protocol: Bluetooth v5.0
  • Memory: 512kB Flash, 256kB ROM, 128kB SRAM
  • Serial Interfaces: I2C, SPI, UART, USART, USB
  • GPIO Pins: 35
  • RF Output Power: 2dBm
  • Sensitivity: -95dBm
  • Current Consumption (Rx/Tx): 3.5mA
  • Voltage Supply: 1.62V to 3.6V
  • Mounting Type: Surface Mount
  • Package: 48-VFQFN Exposed Pad
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: NXP
  • Series: QN9080
