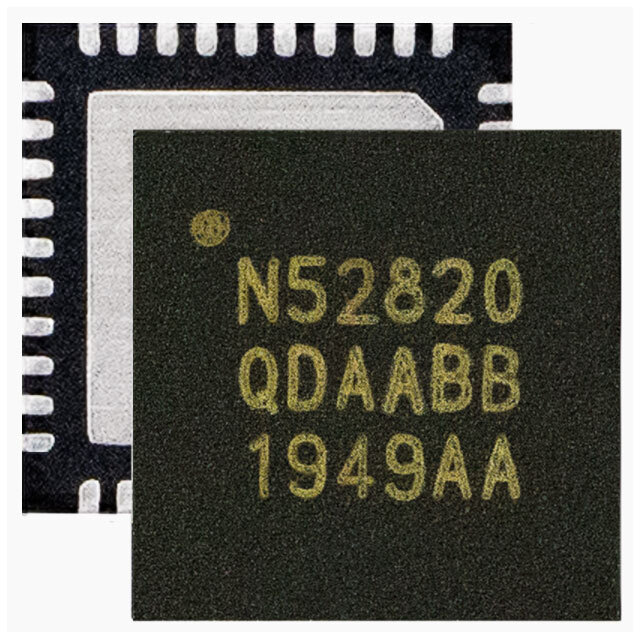

Same model may have multiple batches, images only for reference.
NRF52820-QDAA-D-R Nordic Semiconductors – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

NRF52820-QDAA-D-R

Part No NRF52820-QDAA-D-R
Manufacturer Nordic Semiconductors
Catalog RF Transceiver ICs
Description IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.3, Thread, Zigbee® 2.4GHz 40-VFQFN Exposed Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Nordic Semiconductor ASA
Series nRF52
Packaging Reel - TR
Type TxRx + MCU
RF Family/Standard 802.15.4, Bluetooth
Protocol Bluetooth v5.3, Thread, Zigbee®
Modulation FSK
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 8dBm
Sensitivity -95dBm
Memory Size 256kB Flash, 32kB RAM
Serial Interfaces SPI, UART, USB
GPIO 18
Voltage - Supply 1.7V ~ 5.5V
Current - Receiving 3.4mA ~ 10.9mA
Current - Transmitting 2.3mA ~ 30mA
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 40-VFQFN Exposed Pad
Supplier Device Package 40-QFN (5x5)
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1478539-NRF52820-QDAA-D-R
Ultra Librarian 3D Model Ultra Librarian NRF52820-QDAA-D-R CAD Model
