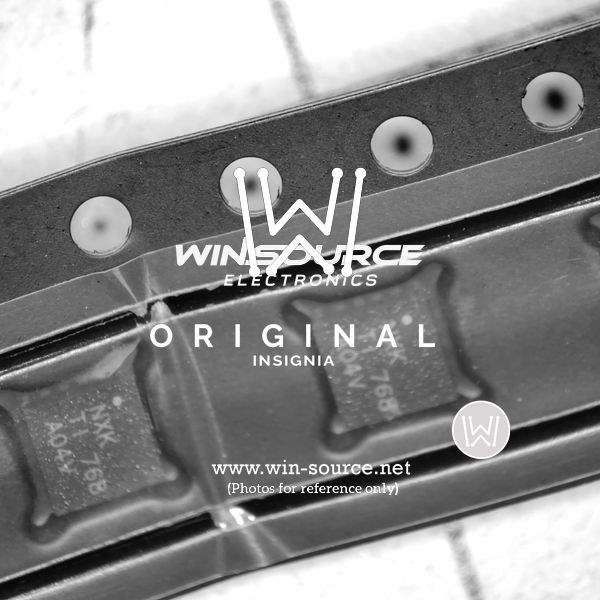

BQ24074RGTR Texas Instruments BQ24074RGTR Real Image BQ24074RGTR label picture 4 BQ24074RGTR real image BQ24074RGTR real image2623 BQ24074RGTR real image2624 BQ24074RGTR Real Image1 BQ24074RGTR Real Image2
Same model may have multiple batches, images only for reference.
BQ24074RGTR Texas Instruments BQ24074RGTR Real Image BQ24074RGTR label picture 4 BQ24074RGTR real image BQ24074RGTR real image2623 BQ24074RGTR real image2624 BQ24074RGTR Real Image1 BQ24074RGTR Real Image2
BQ24074RGTR Texas Instruments BQ24074RGTR Real Image BQ24074RGTR label picture 4 BQ24074RGTR real image BQ24074RGTR real image2623 BQ24074RGTR real image2624 BQ24074RGTR Real Image1 BQ24074RGTR Real Image2
Same model may have multiple batches, images only for reference.

BQ24074RGTR

Part No BQ24074RGTR
Manufacturer Texas Instruments
Catalog PMIC - Battery Chargers
Description IC LI-ION CHARGE MGMT 16-QFN
Datasheet
BQ24074RGTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Battery Chemistry Lithium-Ion
Number of Cells 1
Current - Charging Constant - Programmable
Programmable Features Current, Timer
Fault Protection Over Temperature, Over Voltage, Reverse Current, Short Circuit
Charge Current - Max 1.5A
Battery Pack Voltage 4.2V
Maximum Supply Voltage 10.2V
Temperature Range - Operating -40°C to 125°C (TJ)
Case / Package 16-QFN (3x3)
Win Source Part Number 011904-BQ24074RGTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name BQ24074
Introduction Date October 01, 2007
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian BQ24074RGTR CAD Model

Description

BQ24074RGTR Description

The BQ24074RGTR is a versatile Li-Ion and Li-Polymer linear battery charger with an advanced power path controller. It is optimized for portable applications that require reliable power management and extended battery life.

  • Applications/Projects:
    • Tablets
    • Wearable devices
    • Smart home devices
    • Medical instruments
  • Features and Benefits:
    • Optimized for USB input and AC adapter sources.
    • Supports up to 1.5A charging current.
    • Power path provides simultaneous system operation.
    • Low quiescent current reduces overall power consumption.
  • Additional Details:
    • Comes in a 16-pin QFN package.
    • Compliant with JEITA standards for improved safety.
