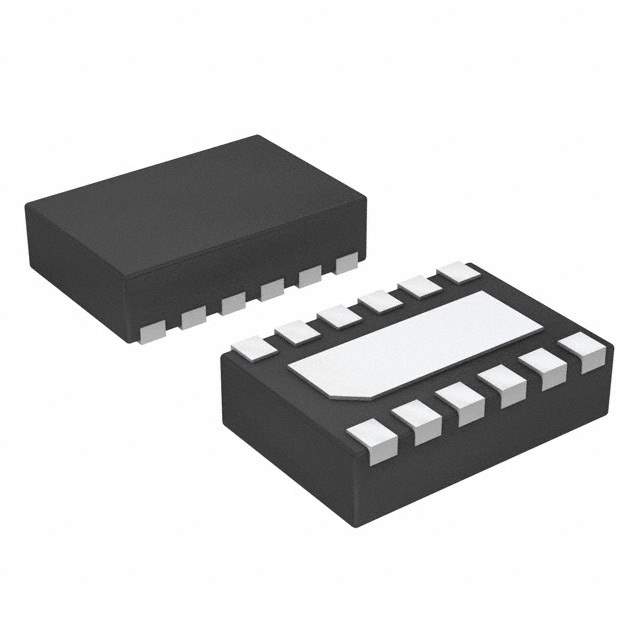

BQ24055DSST Real Image
Same model may have multiple batches, images only for reference.

BQ24055DSST

Part No BQ24055DSST
Manufacturer Texas Instruments
Catalog PMIC - Battery Chargers
Description IC LI-ION CHRG 800MA 4.2V 12SON
Datasheet
BQ24055DSST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Battery Chemistry Lithium-Ion/Polymer
Number of Cells 1
Current - Charging Constant - Programmable
Programmable Features Current
Fault Protection Over Temperature, Over Voltage, Short Circuit
Charge Current - Max 800mA
Battery Pack Voltage 4.2V
Maximum Supply Voltage 28V
Temperature Range - Operating 0°C to 125°C (TJ)
Case / Package 12-WSON (3x2)
Win Source Part Number 141625-BQ24055DSST
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BQ24055DSST CAD Model

Description

Description

The BQ24055DSST is a dynamic batttery management IC designed with a compact footprint, perfect for lightweight portable devices. Its advanced features aim to streamline design while ensuring maximum safety and reliability during operation.

Features and Benefits

  • Small Package Size: Ideal for compact, space-constrained applications.
  • Comprehensive Protection Features: Includes over-voltage, over-current, and reverse discharge protections.
  • Fast Charge Support: Reduces charging time significantly, improving user convenience.

Applications

  • E-Readers
  • Portable Audio Players
  • Fitness Trackers
  • Smart Watches

With intuitive integration capabilities, this IC is tailored for modern portable technology needs.
