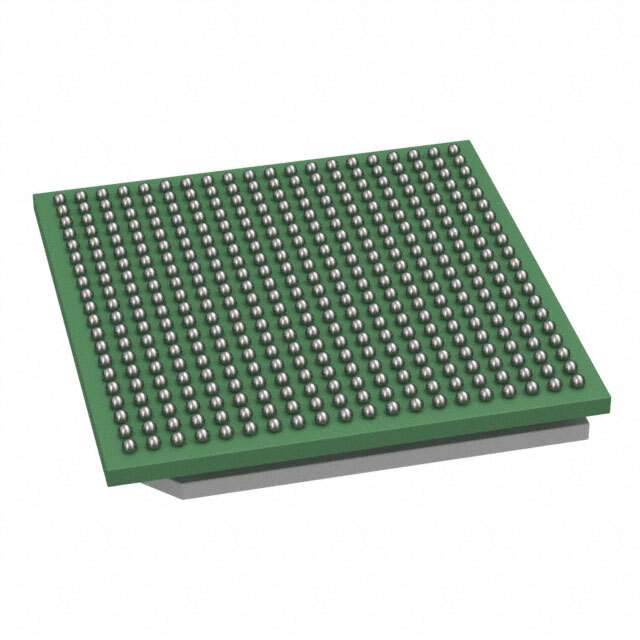

The AFE7444IABJ from Texas Instruments is a high-performance, quad-channel RF-sampling transceiver designed to cater to a wide range of applications including wireless infrastructure, radar systems, test and measurement equipment, and electronic warfare. This state-of-the-art component integrates four complete RF-sampling data converter subsystems with flexible, programmable digital signal processing capabilities.

Key Features

• RF Sampling ADCs and DACs: The device includes four 14-bit, 9-GSPS ADCs and four 14-bit, 12-GSPS DACs, providing excellent dynamic range and signal bandwidth. This enables direct RF sampling which simplifies system design and reduces power consumption.
• Digital Down Converter (DDC) and Digital Up Converter (DUC): Each channel features a DDC and DUC with programmable NCOs, allowing for fine frequency tuning and signal processing at closer to baseband frequencies, reducing the complexity of the analog front end.
• JESD204B/C Interface: The AFE7444IABJ uses the JESD204B/C high-speed serial interface for data transfer, which supports the high-throughput needs of the device while minimizing the number of input/output pins required.
• Programmable Logic: The transceiver includes digital signal processing blocks that can be customized for specific applications, providing the flexibility to implement custom filters, mixers, or other signal processing functions.
• Multi-Band Operation: It supports multi-band operation and is capable of processing several frequency bands simultaneously, making it ideal for multi-standard and multi-band wireless communication systems.

Applications

• Wireless infrastructure (5G, LTE, WCDMA)
• Radar and satellite communications
• Test and measurement systems
• Electronic warfare and defense systems

The AFE7444IABJ transceiver's combination of high-speed, high-resolution data conversion, and digital processing capabilities make it a powerful solution for advanced RF applications. Its compact, integrated design allows for reduced system size and complexity, while providing the performance needed for demanding RF environments.
