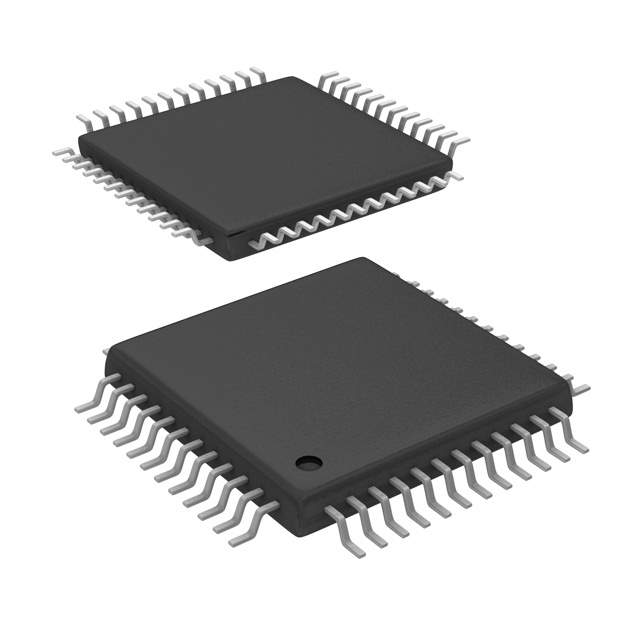

ADS7864YB/2K Real Image
Same model may have multiple batches, images only for reference.

ADS7864YB/2K

Part No ADS7864YB/2K
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description 6-Channel Dual ADC SAR 500ksps 12-bit Parallel 48-Pin TQFP T/R / IC 12BIT 500KHZ 6CH A/D 48-TQFP
Datasheet
ADS7864YB/2K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of Bits 12
Sampling Rate 500k
Number of Inputs 6
Input Type Differential
Data Interface SPI
Configuration S/H-MUX-ADC
Number of A/D Converters 2
Reference Type External, Internal
Analog Supply Voltage 5V
Digital Supply Voltage 5V
Features Selectable Address, Simultaneous Sampling
Temperature Range - Operating -40°C to 85°C
Case / Package 48-TQFP (7x7)
Win Source Part Number 085568-ADS7864YB/2K
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Sensing & Instrumentation, Portable Devices, Computers & Computer Peripherals, Automotive, Thermal Management
Family Name ADS7864
Introduction Date February 08, 2006
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian ADS7864YB/2K CAD Model

Description

ADS7864YB/2K Product Description

The ADS7864YB/2K offers high accuracy and speed for applications demanding fast data conversion. With its advanced architecture, this ADC supports 2000 kSPS data rates, marking it as a top-tier option for data-intensive environments.

  • Applications:
  • Real-Time Systems
  • Scientific Measurement Equipment
  • Energy Metering Systems
  • Robotics and Automation
  • Features and Benefits:
  • 2000 kSPS Data Rate for high-speed applications
  • Multi-Functional, catering to diverse application needs
  • Rugged Design for industrial-grade dependability
  • Comprehensive Signal Processing Capabilities

Additional Details: Engineered for reliability, the ADS7864YB/2K supports a wide voltage range with enhanced signal fidelity. Its compact form factor pairs with a user-friendly interface for smooth deployment.
