The ADS131M08IRSNT is a high-precision, multi-channel analog-to-digital converter (ADC) developed by Texas Instruments, designed to cater to the demanding needs of industrial, medical, and communication applications. This advanced ADC is part of the ADS131M08 series, which is renowned for its exceptional performance in signal acquisition and processing tasks.

Key Features

• High-Resolution: The ADS131M08IRSNT boasts an 8-channel, simultaneous-sampling ADC with a 24-bit resolution, ensuring high-fidelity signal conversion with minimal data loss.
• Data Rate: It offers a wide data rate range from 250 SPS to 128 kSPS, allowing users to select the optimal speed for their specific application requirements.
• Integrated Features: The device includes several integrated features such as a low-drift voltage reference, an oscillator, and a temperature sensor, which simplify system design and reduce the need for external components.
• Programmable Gain: With programmable gain amplifier (PGA) options, the ADS131M08IRSNT can amplify low-level signals for improved dynamic range and performance.
• Interface: A flexible SPI-compatible serial interface enables seamless communication with microcontrollers and digital systems.
• Power Efficiency: It operates with a low power consumption, making it ideal for battery-powered and energy-efficient applications.

Applications

The robust performance and versatility of the ADS131M08IRSNT make it an excellent choice for a wide range of applications, including:

• Industrial automation and control systems
• Medical instrumentation such as electrocardiograms (ECGs) and patient monitoring
• Energy monitoring and smart grid infrastructure
• Data acquisition systems

Package and Quality

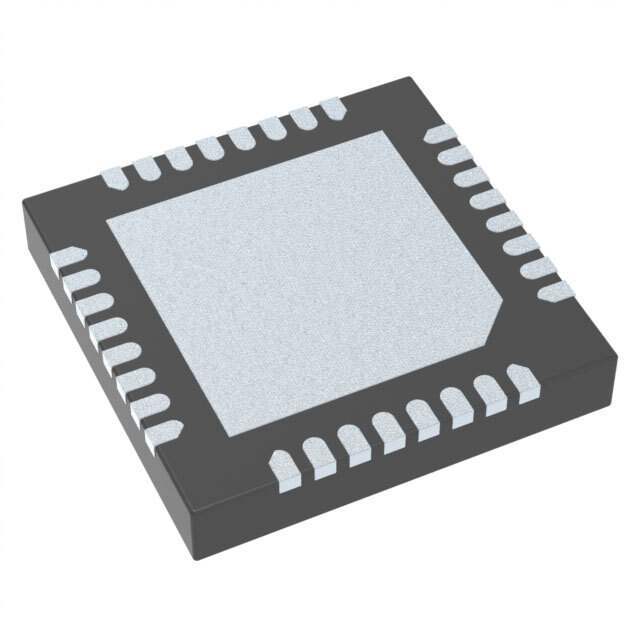

The ADS131M08IRSNT is available in a compact WQFN-32 package, which is designed for space-constrained applications. Texas Instruments is committed to high standards of quality and reliability, ensuring that this ADC meets the rigorous demands of industrial-grade components.
