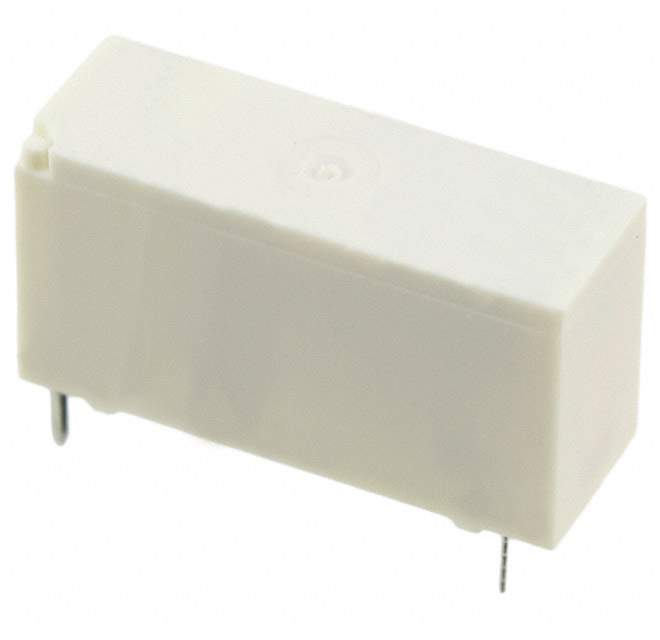

V23061B1002A301 Real Image
Same model may have multiple batches, images only for reference.

V23061B1002A301

Part No V23061B1002A301
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 8A 5V / General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series MSR, SCHRACK
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 42.4 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class A
Must Operate Voltage 3.4 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 118 Ohms
Base Product Number V23061
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315166-V23061B1002A301
Ultra Librarian 3D Model Ultra Librarian V23061B1002A301 CAD Model

Description

The V23061B1002A301 relay from TE Connectivity Potter & Brumfield Relays is a high-quality power relay with a contact form of SPDT (1 Form C).

  • Contact Form: SPDT (1 Form C)
  • Coil Voltage: 5VDC
  • Coil Resistance: 118 Ohms
  • Contact Material: silver tin oxide (AgSnO)
  • Contact Rating (Current): 8A
  • Switching Voltage: 400VAC - Max
  • Seal Rating: sealed - fully
  • Mounting Type: through hole
  • Package: tube package
  • Application: The V23061B1002A301 relay is perfect for use in a variety of electronic applications.
